Niedax GRP cable ladder

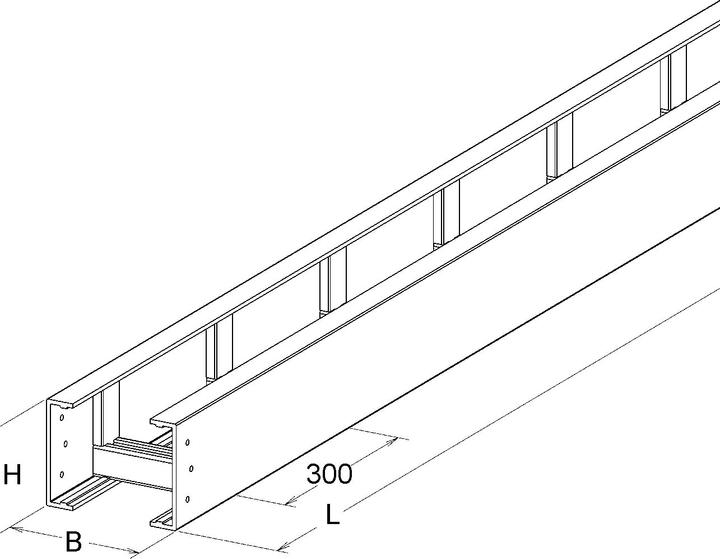

GRP cable ladder to DIN EN 61537, pultruded, consisting of U-shaped, unperforated side rails but with connector holes for the connection and open, clamped, unperforated C-profile rungs with a slot width of approx. 15 mm, for horizontal installation, halogen-free. The rungs are fastened with a metal-free patented clamp fastening, which is why the cable ladder is made of 100% glass fibre reinforced plastic (GRP). When installing the cable ladder, a mounting distance of approx. 30 mm must be taken into account. Dimensions (approx.) H x W : 100 x 800 mm Material thickness upright : 5 mm Rung spacing : 300 mm Side rail perforation : Ø 8 mm Centre spacing : 40 mm Delivery length L : 3000 mm Usable cross-section : 47375 mm² Material : UP-GF (glass fibre reinforced polyester) Colour : pebble grey RAL : 7032 (similar).
