Nedo 210619-613 Light Aluminiumstativ 0,53-1,50 m

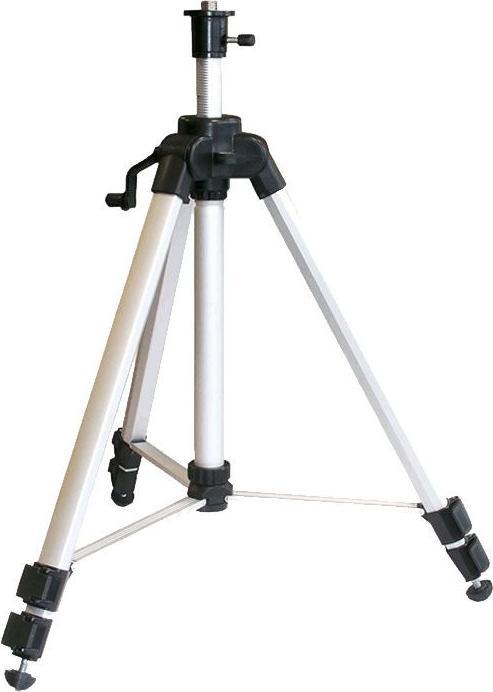

Light Crank Tripod

With crank tripods featuring indirect drive, the crank operates via a reduction gear on the height-adjustable gear column. This allows for very precise height adjustments even with heavy lasers. Additionally, the reduction gear prevents the unintended lowering of the laser when releasing the lock. The indirect crank drive is a comfortable solution, especially in conjunction with heavy rotating lasers.

Thanks to the double telescope, Nedo crank tripods offer an extremely large working range. Whether used as a meter mark or ceiling construction tripod, Nedo crank tripods are as versatile as your tasks require.

The Nedo spread stop, protected by a utility model, ensures a secure stand for all Nedo crank tripods.

To protect sensitive floors, all heavy Nedo crank tripods can be equipped with combination shoes.

Features:

Includes carrying bag

Bubble level in the tripod head

Quick clamping

Spread stop

Interchangeable tripod plate with 1/4'' and 5/8'' threads

Technical Data:

Minimum usable height: approx. 0.53 m

Maximum usable height: approx. 1.50 m

Transport length: approx. 0.60 m

Weight: approx. 1.85 kg

Holding screw with 1/4'' and 5/8'' threads

Crank lift: 300 mm

Application Area:

Point and line lasers

Light rotating lasers.
