MSW Stick winch Rack and pinion winch

Rack and pinion winch with low and high load application

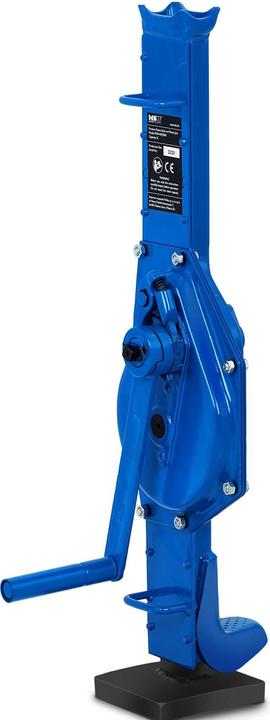

With the rack and pinion winch, you get a simple and effective lifting device to safely raise loads. The load can be applied at the head or at the claw of the device, making this automotive tool an indispensable helper in your workshop or production hall. Thanks to its robust design, loads of up to 3,000 kg can be lifted.

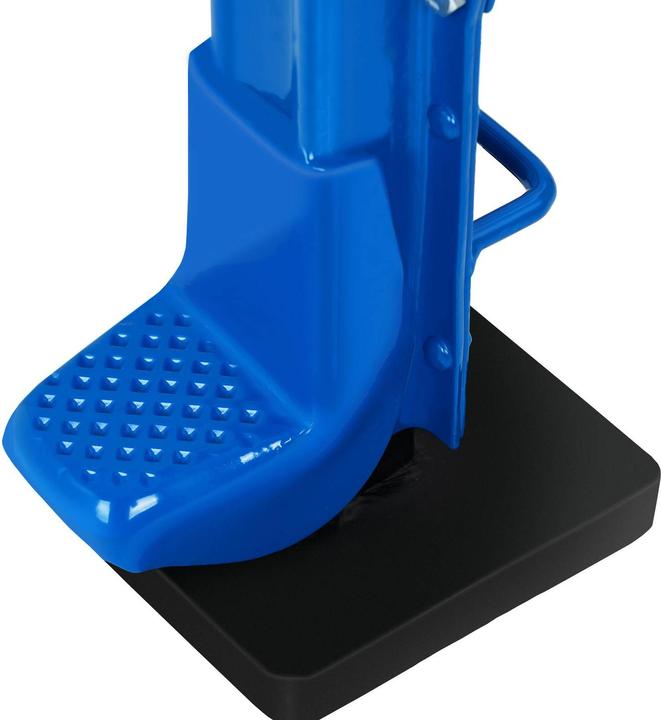

With the MSW-RPJ3000 winch, you can comfortably lift low and higher objects using a crank. The claw for lower items is 70 mm high. For spaces higher than 730 mm, you can use the head of the steel winch for lifting. The rack and pinion winch can be raised by 350 mm at both load points, allowing you to safely lift loads within this lifting range.

The stable and durable construction of the steel lifting winch allows you to move vehicles or objects weighing up to 3,000 kg. You only need to operate the crank, which works with a force of 280 N, effectively utilizing the crank movement. This way, you can easily and controllably lift and lower vehicles or other heavy loads.

With a width of 296 mm, the lifting device is very compact and can be easily stored or transported. The purely manual operation allows you to use the crank winch without electricity, making it extremely flexible for mobile use.

Technical details:
Material: Steel
Load capacity: 3,000 kg
Construction height: 730 mm
Minimum claw height: 70 mm
Lifting height: 350 mm
Maximum working height: 1080 mm
Maximum working height of claw: 420 mm
Width: 296 mm

Delivery includes:
Rack and pinion winch MSW-RPJ3000, operating instructions.
