MSW Powder coating gun

Currently out of stock
Free shipping starting at 50.–

Product details

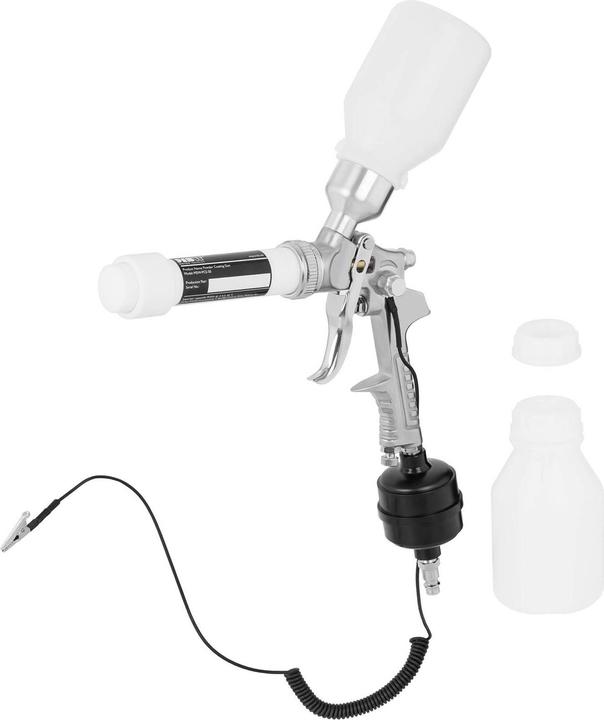

No more dripping paint with this powder coating device. Do you want to professionally and easily apply a protective powder coating to materials such as steel, aluminium or glass to make them resistant to weathering, corrosion and even many chemicals? No problem with the MSW-PCS-50 powder coating gun, all you need to do is connect an additional air compressor and off you go. Simply screw one of the 400 ml powder coating containers onto the powder coating gun and clamp the 1.95 m long earthing cable to the workpiece. The powder particles are electrostatically charged in the control box and adhere to the object, which is sprayed with an adjustable operating pressure of 15 to 50 psi. When the powder coating is finished, the coated product is baked at a temperature of 120 to 220 °C. This makes the treated objects significantly more robust. This makes the treated objects significantly more robust than liquid paint. Since, unlike paint, no solvent is used, powder coating is very environmentally friendly and leaves no colour drips.

Key specifications

Application range
IndoorOutdoor
Paint system type
Spray system
Power supply
Air blast

General information

Item number
32700181
Manufacturer
MSW
Category
Paint systems
Manufacturer no.
MSW-PCS-50
Release date
24.2.2023

Colour

Colour
Silver
Exact colour description
Silver

Categorisation

Application range
IndoorOutdoor
Paint system type
Spray system

Power supply

Power supply
Air blast

Origin

Country of origin
Germany

Scope of delivery

Scope of delivery
Installation managementManualMoisture separatorPowder coating gun MSW-PCS-502 Powder container (400 ml each)

Product dimensions

Length
300 mm
Height
415 mm

Ingredients and instructions for use

Ingredients
No more dripping paint with this powder coating device. Do you want to professionally and easily apply a protective powder coating to materials such as steel, aluminium or glass to make them resistant to weathering, corrosion and even many chemicals? No problem with the MSW-PCS-50 powder coating gun, all you need to do is connect an additional air compressor and off you go. Simply screw one of the 400 ml powder coating containers onto the powder coating gun and clamp the 1.95 m long earthing cable to the workpiece. The powder particles are electrostatically charged in the control box and adhere to the object, which is sprayed with an adjustable operating pressure of 15 to 50 psi. When the powder coating is finished, the coated product is baked at a temperature of 120 to 220 °C. This makes the treated objects significantly more robust. This makes the treated objects significantly more robust than liquid paint. As no solvent is used, unlike paint, powder coating is very environmentally friendly and leaves no paint drips.Technical detailsMaterial: aluminium and plastic (PTFE)Spray nozzle diameter: 30 mmPowder container: 2 x 400 ml. Max. viscosity: > 400 μm; normal 20 - 80 μmOperating pressure: 15 - 50 psiLength of earthing cable: 1.95 m. Scope of delivery: MSW-PCS-50 powder coating gun, 2 powder containers (400 ml each), moisture separator, earthing cable, operating instructions.
