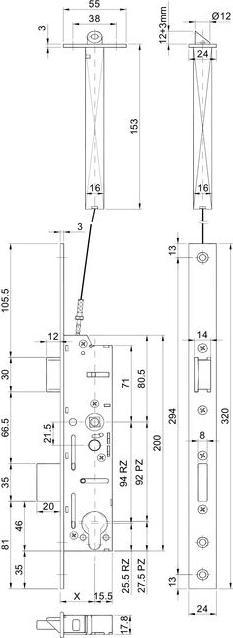

MSL Panic tubular frame lock 19466PB Panic B additional latch

Additional security: Additional bolt at the top. Certification according to EN 179, EN 1125, and EN 1634-1 to 3. Burglary resistance up to class RC2 can be achieved in suitable door systems.

These mortise locks are equipped with a door handle, panic door fittings, or a push bar mounted on the inside of the door. A door handle is also attached to the outside of the door. When unlocked, the door can be opened from both sides. When locked, the door cannot be opened from the outside, but can always be opened from the inside (panic function opening inwards). The long bolt is retracted, and the latch is simultaneously unlocked. The lock automatically engages when the door closes (automatic locking). The spindle (after-run) is split with panic function B. This panic function is suitable for doors that need to be opened from the outside at certain times (day operation). Day operation can be activated via the cylinder by turning the key in the direction of opening to the stop - the door handle is then locked on the outside of the door.

Security for private service doors, fire protection doors, and emergency exit doors. Metal doors (profile doors). Only use bolt contact MSL 1886 on the frame side. Use special profile half-spindle MSL 5968.
