MSL Panic multipoint locking devices FlipLock 24546 Pbe-SV

These multi-point locks feature a handle on the inside and a handle on the outside. In the unlocked state, the door can be opened from both sides. When locked, the door cannot be opened from the outside, but can always be opened from the inside (panic function opening inwards). The three long bolts are retracted, and simultaneously the three latch bolts become soft. When the door closes, the lock automatically engages (self-locking). The square (cam) is divided in the panic function B. This panic function is suitable for doors that need to be opened from the outside at times (day operation). Day operation can be activated via the cylinder with a turn of the key in the opening direction until it reaches the stop, at which point the handle on the outside is engaged.

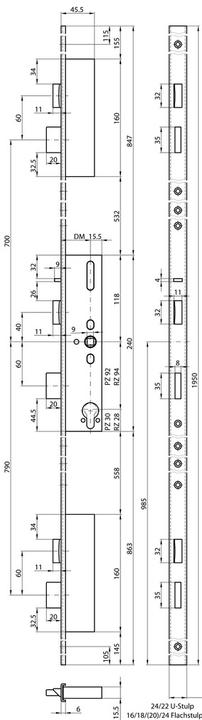

Locking occurs automatically. 6-point locking, without a changeover, with latch bolts and long bolts, bolt extension 20 mm, single turn, cam 9 mm, two-part, faceplate, latch, bolt, and cam made of stainless steel, without strike plates.

Suitable for knob and freewheeling cylinders.
