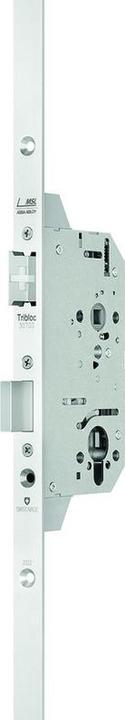

MSL MPV RollTribloc 30700.2/70/20r/8, li/re

On both sides, there is a handle installed. When the door closes, the roller pins are moved upwards by a handle movement, engaging with the strike plate located in the door frame, and are driven down into the locked position. This pulls the door leaf against the door frame. The eccentric roller pins allow for easy adjustment if needed. When the key is turned in the opening direction, the main bolt is retracted. A downward handle movement then moves the roller pins into the opening position. Subsequently, the latch is retracted.

• Tool-free adjustable for DIN right and left
• Four-point locking
• Version with adjustable roller pins
• Latch blocking
• Bolt projection of 20 mm
• Single turn
• Automatic handle reset
• Switching from handle operation to key operation, as well as from key operation to handle operation is possible

Application area
For entrance and apartment doors at risk of warping. For security and fire protection doors in both commercial and private sectors.
