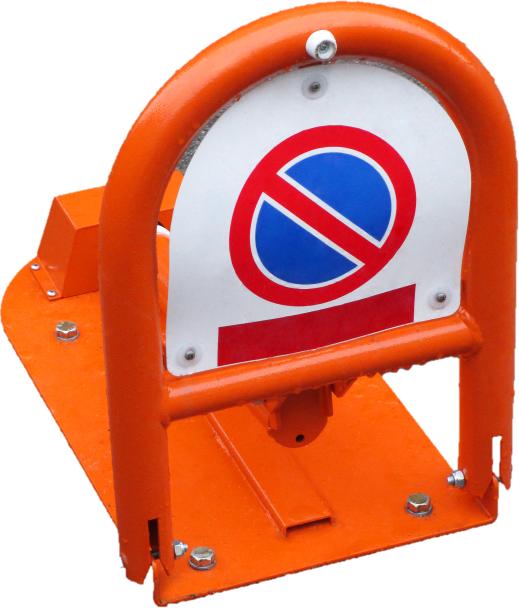

Moravia Electric parking bracket type PB Bracket height 440 mm, above ground 80 mm

Electric parking bracket type PB. Height of bracket: 440 mm, above ground: 80 mm. Size (horizontal): 940 x 320 mm (LxW). Power supply: 230V AC, 25 W. Max. current consumption: 2A, supply voltage motor: 24 Vdc. Current consumption: 2A, supply voltage motor: 24 Vdc. With external control unit (control box size: 217 x 267 x 105 mm). Max. cable length between external control unit and parking bracket: 20 m. Opening speed: 9 sec. Protection class: IP 54. Without control devices (e.g., radio, etc. optional). Not included in the price: obtaining of permits, any foundations in accordance with factory drawings. On-site service: mains connection 230VAC/50 Hz to control unit, empty conduits and supply cable (24VDC) from control unit to parking bracket. Warranty: 2 years in accordance with standard SIA 118.
