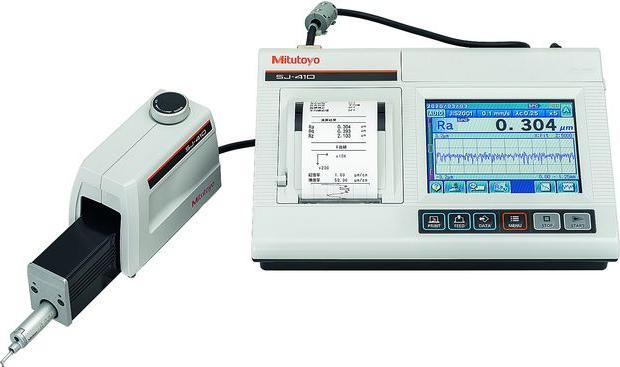

Mitutoyo Roughness measuring device surf test

Version: Portable, battery-independent reference plane system with dust-protected, touch-sensitive control panel and integrated printer. Extremely simple, intuitive menu navigation and clear display of measurement results and profiles on a 5.7-inch color display. Optional measurement with free touch system or probe tip. Measures roughness, waviness, and primary profile. Statistical function and color-coded tolerance assessment. A large number of internationally recognized parameters according to DIN EN ISO, VDA, JIS, ANSI, and MOTIF, as well as 16 integrated languages. Phase-correct Gaussian filter according to DIN EN ISO 16610-21 (replaces DIN EN ISO 11562). Compensation function for radii and inclinations. DAT function: Digital inclination assistant for aligning the feed unit. Two different calculations can be performed with just one measurement. Quick output and documentation of measurement results, graphics, and measurement conditions via integrated printer. Easy backup of measurement data on SD memory card. Calibration values for five different probes can be stored and retrieved. Note: Free analysis software available upon request. Item available only in Germany and Austria! Scope of delivery: Includes feed unit with standard probe tip, 5 rolls of thermal paper No. 499050, power adapter, calibration standard, user manual, and storage case. Use: Measurement of deep grooves. Measurement with upward-facing probe. Cylinder measurement with support foot. Measurement of surface roughness of cylinders across the cylinder axis. Measurement with measuring stand and leveling table.
