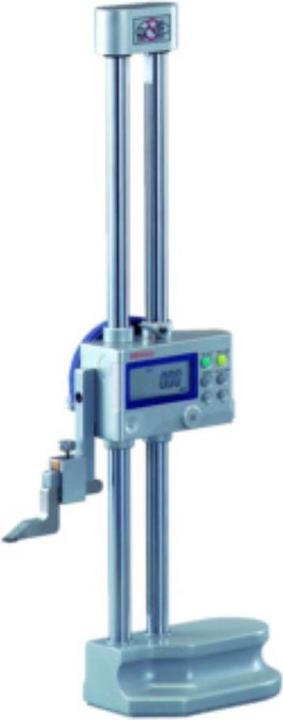

Mitutoyo Digital height measuring and marking device, marking height: 300 mm

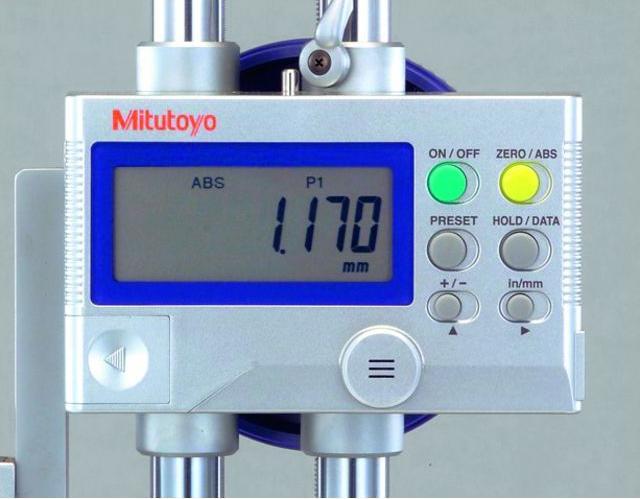

Execution: Direct reading via clearly visible digital display. Battery-operated with very low power consumption. Hold value button – Pressing the button allows the measurement result to be retained. All important parts are hardened. High stability due to two parallel hardened measuring columns with milled tooth surfaces on the inside (size 1000 with 3 measuring columns). 2 preset values allow for the storage of references (e.g., hard rock plate and workpiece). Scribing needle equipped with carbide. Sturdy base with hardened and ground contact surface. On the back of the display housing, there is a crank for quick adjustment and a knurled wheel for fine adjustment. Delivery includes: 1 battery No. 081560 size 357, 1 protective cover, 1 carbide scribing needle No. 443510.
