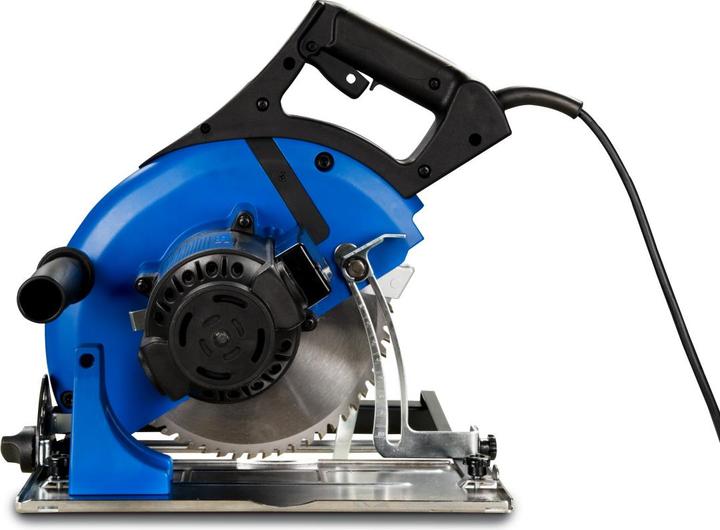

Metallkraft Metal Hand Circular Saw HKS 230 Action Set

Metal hand circular saw Metalkraft HKS 230 action set, item no.: 3840231SET

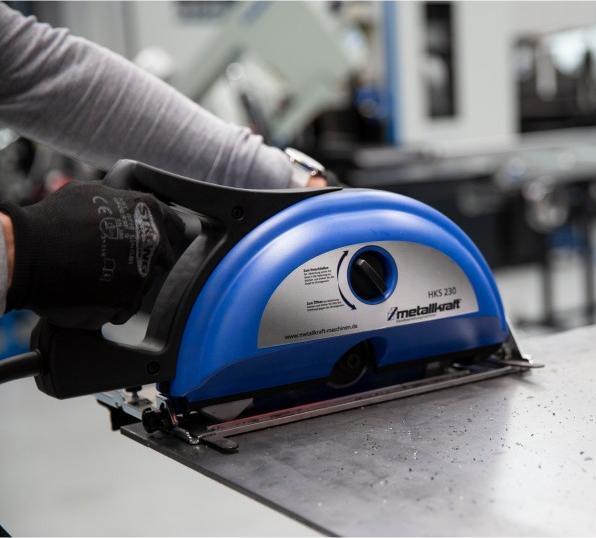

For operation and construction sites for cutting aluminum, steel, and stainless steel.

The ideal machine for assembly companies, facade builders, metal workshops, repair shops, exhibition builders, etc.

Perfectly applicable where angle grinders are not strong enough or work unsatisfactorily.

Cuts stainless steel with minimal burrs.

Chips dissipate heat, resulting in only minimal heat generation during cutting.

High-performance motor with soft start and overload protection.

Diving into the material is possible.

Simple and quick cutting depth adjustment based on a precise and easy-to-read scale.

Stable and robust construction.

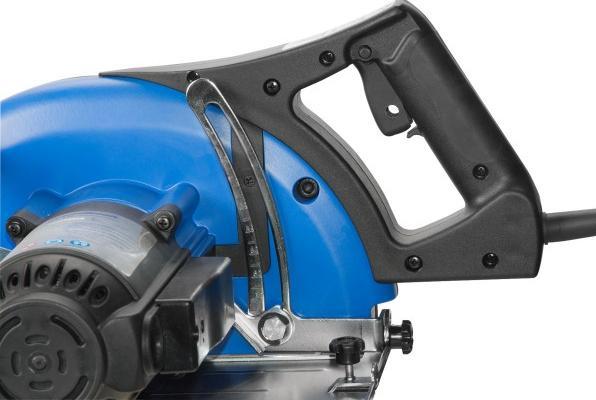

The handle can be screwed in two different positions to comfortably operate the saw in any position.

Easy to use.

Equipment details:

Simple and quick cutting depth adjustment based on a precise and easy-to-read scale.

Quick saw blade change through gearbox locking pin.

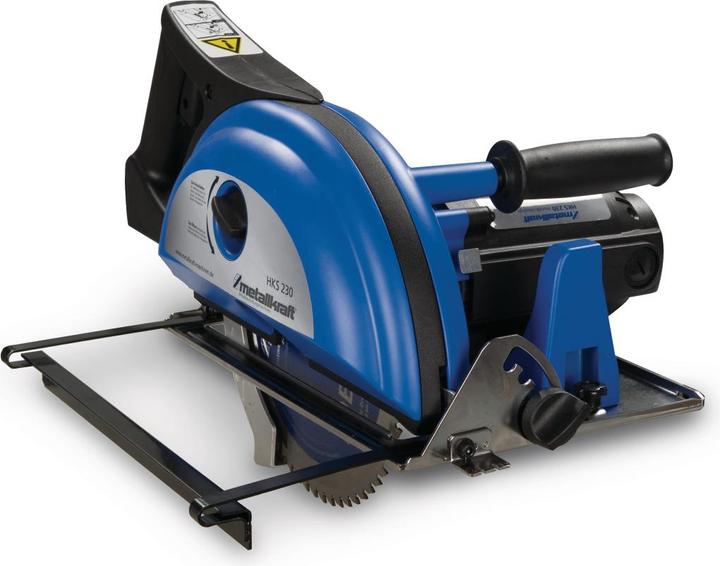

With double-guided parallel stop for precise cutting guidance.

Stepless and convenient adjustment of the miter angle; notches at 0°, 15°, 30°, and 45°.

The handle can be repositioned for miter cuts, allowing the saw to be safely guided parallel to the cutting plane.

Scope of delivery:

1 x saw blade 230 x 25.4 mm steel Z48.

Saw in a plastic case.

Saw blade speed(s): 2200 min¯¹.
Saw blade diameter: 230 mm.
Saw blade bore: 25.4 mm.
Saw blade thickness: 2 mm.
Length (product) approx.: 620 mm.
Width/Depth (product) approx.: 320 mm.
Height (product) approx.: 271 mm.
Weight (net) approx.: 7.1 kg.
Power of drive motor: 1.7 kW.
Connection voltage: 230 V.
Phase(s): 1 Ph.
AC: Type of current.
Mains frequency: 50 Hz.
Cutting capacity 0° (square) pipe: 82 mm.
Cutting capacity +45° (square) pipe: 56 mm.
