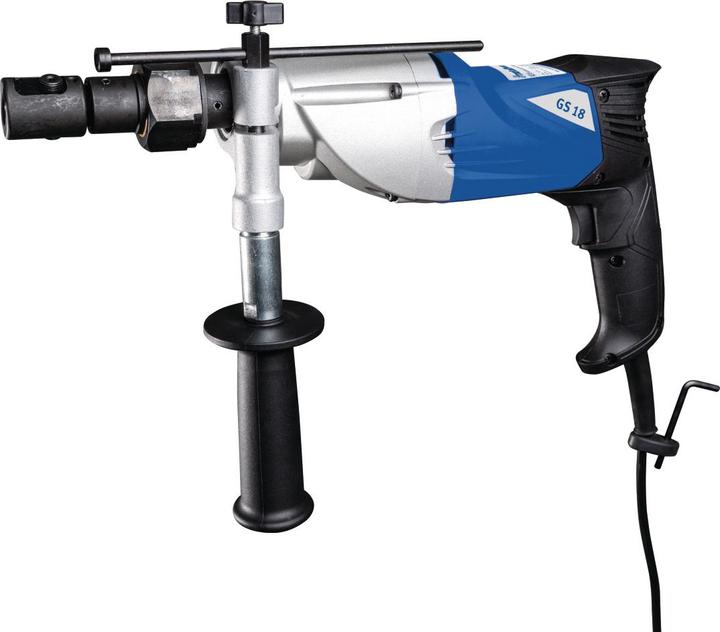

Metallkraft Electric tap GS 18

Electric Thread Cutting Machine Metallkraft GS 18, Item No. 3860018

With reverse gear for time-saving, precise cutting of threads in drilled holes.

• The reverse gear allows for very short processing times: pressing the spindle starts the slow clockwise rotation of the tool, and when pulling back, the fast return at 680 RPM is automatically activated.

• Easy thread cutting in just one operation thanks to high torque, low speed, and high running smoothness accuracy.

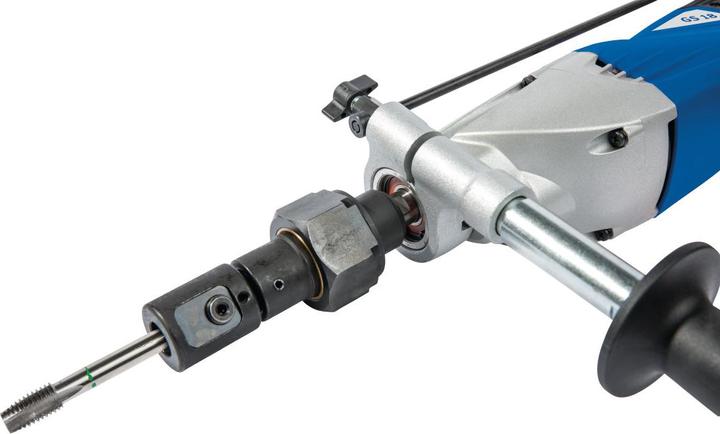

• Additional handle enables optimal and comfortable tool guidance.

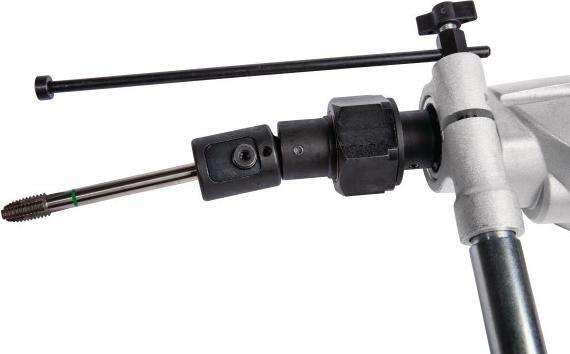

• Compensation for angular deviations of the cutting tool in the drill hole through a flexible coupling between the collet holder and the thread collet.

• Depth stop as standard for blind thread holes.

Scope of delivery:

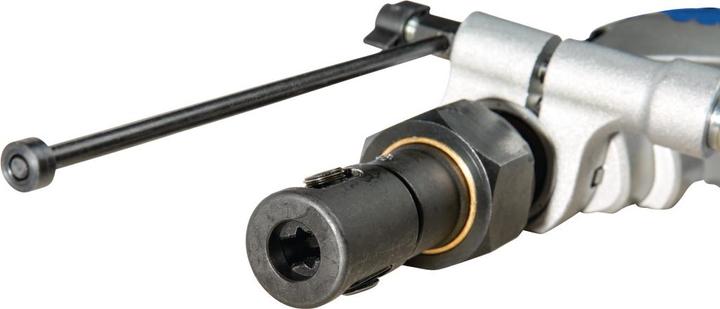

• Universal adapter M6 - M18 with slip clutch.

• Additional handle.

• Depth stop.

• 4 mm hex key.

• Carrying case.

Length (Product) approx.: 400 mm
Width/Depth (Product) approx.: 325 mm
Height (Product) approx.: 240 mm
Weight (net) approx.: 3.15 kg
Explanation of dimensions: Additional handle in 90° position to the device handle
Input power: 0.45 kW
No-load speed (clockwise): 280 min¯¹
No-load speed (counterclockwise): 680 min¯¹
Speed under load (clockwise): 170 min¯¹
Speed under load (counterclockwise): 410 min¯¹
Supply voltage: 220 - 240 V
Phases: 1
Type of current: Alternating current
Mains frequency: 50/60 Hz
Thread cutting steel (S235JR) short-term operation: M18
Thread cutting steel (S235JR) continuous operation: M14
Thread cutting aluminum short-term operation: M18
Thread cutting aluminum continuous operation: M16
Cable length: 3 m
Release torque of the slip clutch: 31.4 - 34.3 Nm
Explanation of the release torque of the slip clutch: Data for thread diameter M16.
