Metabo Set KGS 305 M + KSU 401

Metabo Set KGS 305 M cross-cut saw with KSU 401 machine frame

Features:

• Corded cross-cut and mitre saw of mobile class M
• User-friendly and lightweight
• Precision Cut Line (PCL): Exact shadow cut line without readjustment due to cleverly placed LED
• Powerful universal motor for high cutting performance
• Turntable with precise and fast adjustment of common angles and detent points

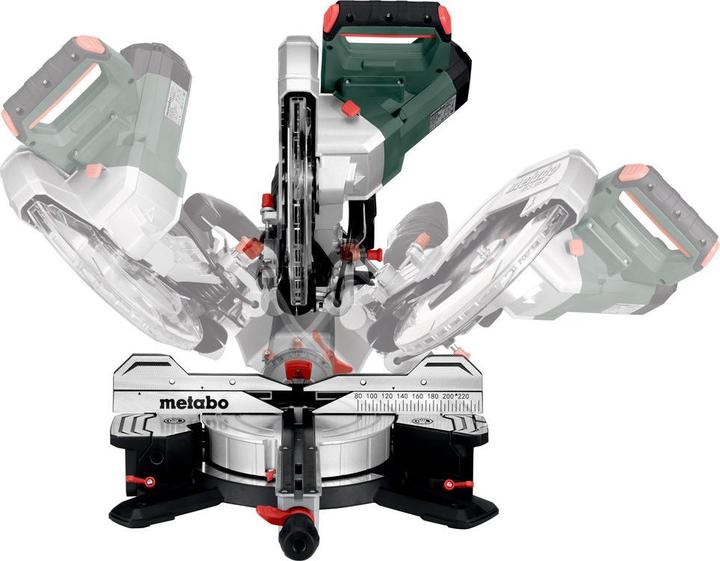

• Saw blade tilt on both sides up to 47°
• Stable die-cast aluminium housing
• Chip extraction via integrated chip catcher funnel
• Quick-clamping clamp for secure fixing of the workpiece
• Depth stop for easy production of grooves
• Ergonomic handle
• Good readable scales and visible operating elements

Scope of delivery:

• Saw blade 305 x 30 Z56 / Precision cut wood
• Two integrated table reducers

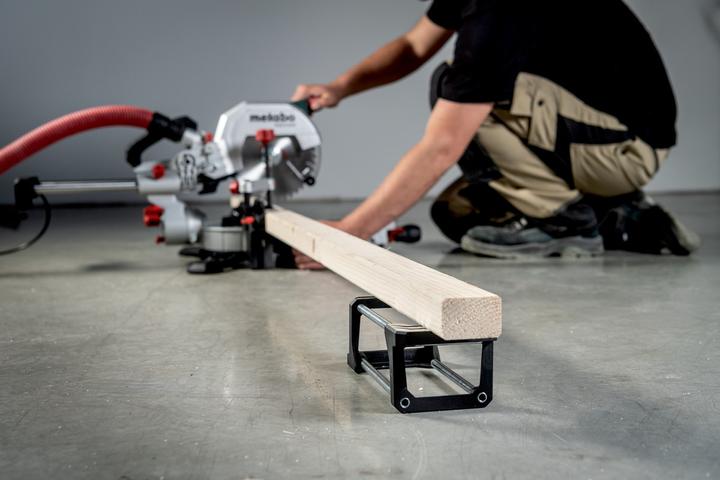

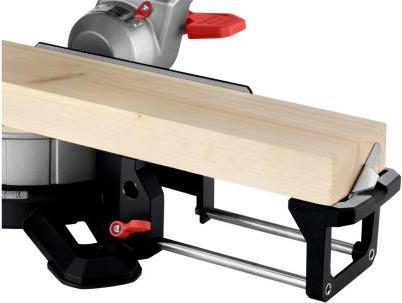

• Cut-off stop

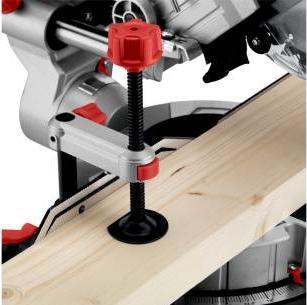

• Material clamp
• Tool for saw blade change
• Cable rewinding
• Swarf collection bag

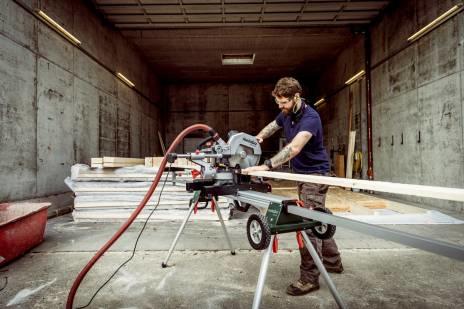

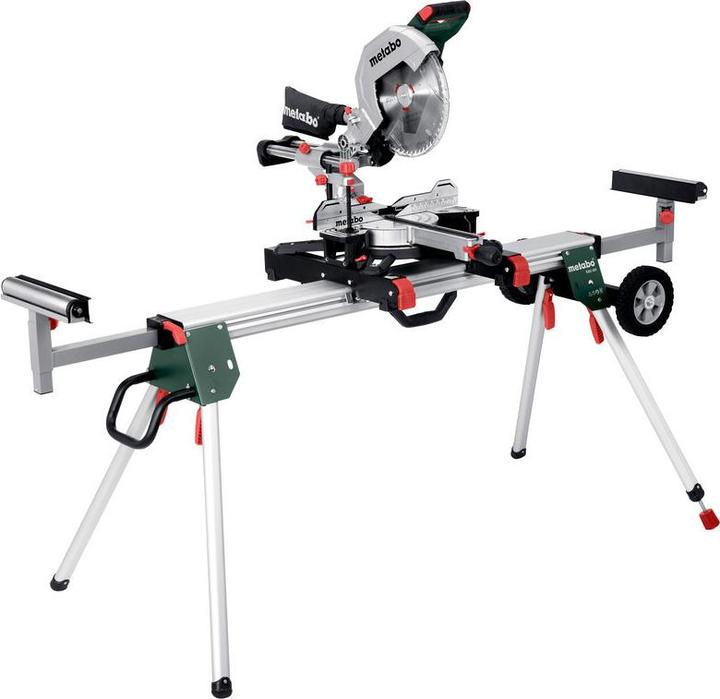

• Machine frame KSU 401

Technical data:

• Dimensions: 780 x 500 x 657 mm
• Support surface: 345 x 770 mm
• Max. cutting width 90°/45°: 305 / 215 mm
• Max. cutting depth 90°/45°: 110 / 67 mm
• Cutting capacity 90°/90°: 305 x 110 mm
• Cutting capacity 45°/45°: 215 x 67 mm
• Twist adjustment left/right: 50 / 60°
• Saw blade tilt left/right: 47 / 47°
• Saw blade: 305 x 30 mm
• Nominal input power: 1600 W
• Nominal input power S1 100%: 1600 W
• Nominal input power S6 20%: 2000 W
• Idle speed: 3700 /min
• Rotation speed at nominal load: 3000 /min
• Cutting speed: 59 m/s
• Weight: 18.6 kg
• Cable length: 2 m
• Sound pressure level: 87 dB(A)
• Sound power level (LwA): 100 dB(A)
• Measurement uncertainty K: 3 dB(A).
