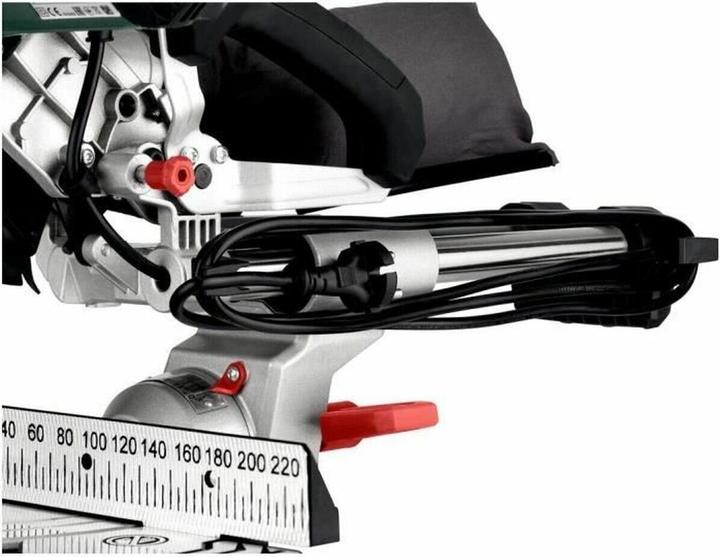

Mobile M-Class miter saw with sliding function - lightweight, precise, user-friendly. Precision Cut Line (PCL): exact shadow cutting line without readjustment thanks to cleverly placed LED. Large cutting capacity due to the sliding function for wide workpieces. Rotating table with quick, precise adjustment of common angles via detent points. Saw blade tilt from -2 to 47°, making it suitable for undercuts. Robust construction from die-cast aluminum for the toughest demands. Effective chip extraction through integrated chip collection funnel. Soft start for long motor and gearbox life. Extendable table extensions, also removable for supporting extremely long workpieces. Quick-clamping device for secure fixation of the workpiece from above or in front. Depth stop for easy groove production. All scales and controls visible and intuitively operable from the working position. Ergonomic grip areas for one-handed or two-handed carrying. Delivery includes: "Precision cut wood - classic" saw blade 216x30 Z40, 2 integrated table extensions, length stop, material clamp, tool for saw blade change, cable winding, chip collection bag.
Nominal diameter | 216 mm |
Max. depth of cut at 90° | 70 mm |
Mains voltage | 230 V |
Power | 1200 W |
Item number | 36686778 |
Manufacturer | Metabo |
Category | Chop saw + mitre saw |
Manufacturer no. | 613216000 |
Release date | 19.4.2024 |
Sales rank in Category Chop saw + mitre saw | 5 of 359 |
External links | |
May include power adapter | Yes |
Colour | Green, Grey |
Exact colour description | Grey / Green |
Suitable for | Wood |
Max. tilt adjustment | 47° |
Tool holder | Spindle lock |
Mounting hole | 30 mm |
Nominal diameter | 216 mm |
Number of teeth | 40 |
Max. depth of cut at 90° | 70 mm |
Max. Depth of cut at 45 | 40 mm |
Power supply | Electrical connection |
Battery equipment | No batteries supplied |
Charger equipment | No charger supplied |
Mains voltage | 230 V |
Cable length | 2 m |
Power | 1200 W |
Max. Idle speed | 5000 rpm |
Max. noise level | 99 dB |
Sound power level (LWA) | 99 dB |
Sound pressure level (LpA) | 86 dB |
Material group | Cardboard |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Saw blade "Precision cut wood - classic" 216x30 Z4 |
Length | 710 mm |
Width | 476 mm |
Height | 512 mm |
Weight | 13.40 kg |
Length | 76.20 cm |
Width | 51.40 cm |
Height | 34 cm |
Weight | 16.64 kg |
