Merten Frame

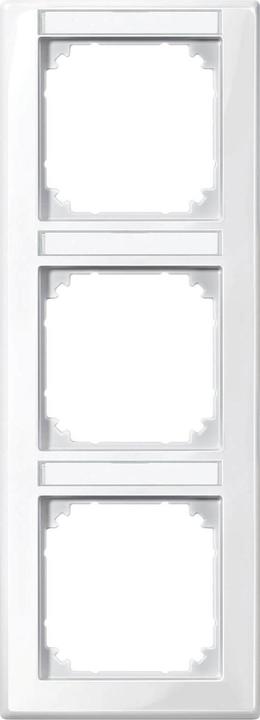

Merten Frame 3f.aws/gl 471325

Manufacturer: Merten
Description: Frame 3f.aws/gl with labeling carrier
Type: 471325
Number of units: 3
Mounting direction: horizontal
Number of horizontal units: 3
Number of vertical units: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: yes
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: antibacterial
Surface finish: glossy
Color: active white
RAL number (similar): 9016
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp/screw fastening
Width: 80.5 mm
Height: 222.9 mm
Depth: 10.1 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 60 mm

Merten Frame 3f.aws/gl 471325: further details for the clear identification of inserts. When disassembling the frame and central plate, the labeling carrier remains on the insert. This ensures the assignment of switches, sockets, or KNX components even after renovation. Accessories: Labeling strips for M-SMART frames with labeling carrier 484100.

Scope of delivery: Per frame 3 labeling strips and 3 viewing windows. Material: Brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color similar to RAL 9016. Color active white glossy. EAN: 4042811043711.
