Merten Frame
6 pieces in stock
Product details

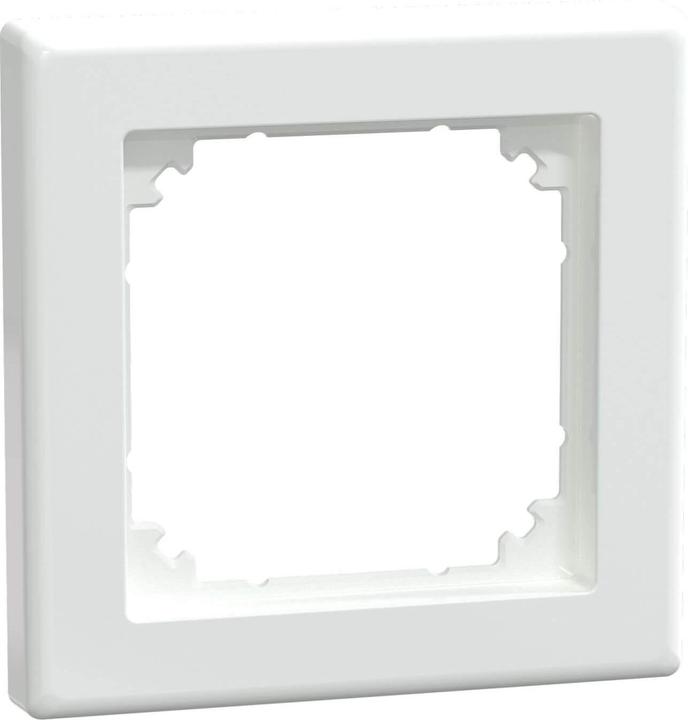

Merten Frame 1f.aws/gl 478125 Manufacturer: Merten Designation: Frame 1f.aws/gl Type: 478125 Number of units: 1 Mounting direction: horizontal and vertical Number of units horizontal: 1 Number of units vertical: 1 Number of switch inserts: 1 With mounting frame: no Flush mounting: yes Suitable for underfloor trunking: no Suitable for device installation trunking: no Suitable for recessed installation: no Text field/inscription area: no Material: polycarbonate Material grade: Thermoplastic Halogen-free: yes Surface protection: antibacterial Surface finish: glossy Color: active white RAL number (similar): 9016 Transparent: no With hinged cover: no Protection class (IP): IP20 Impact resistance: IK02 Mounting type: clamp/screw mounting Width: 80.5 mm Height: 80.5 mm Depth: 10.1 mm Installation width: 0 mm Installation height: 0 mm Diameter of hole (opening): 60 mmMerten Frame 1f.aws/gl 478125: more detailsMaterial thermoplastic brilliant, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color similar to RAL 9016. color active white glossy. , EAN: 4042811043742.
Colour | White |
Switch programme type | Covering frame |
Width | 80.50 mm |
Item number | 20022404 |
Manufacturer | Merten |
Category | Accessories switch programme |
Manufacturer no. | 478125 |
Release date | 16.3.2022 |
Colour | White |
Exact colour description | Active white |
Material group | Plastic |
Material | Plastic |
Switch programme type | Covering frame |
Mounting type | Adhesive |
Mounting direction | Horizontal, Vertical |
Additional properties | Antibacterial, Halogen-free |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂ emissions | 1.32 kg |
Climate contribution | CHF 0.11 |
Length | 10.10 mm |
Width | 80.50 mm |
Height | 80.50 mm |
Diameter | 60 mm |
Weight | 20 g |
Length | 8 cm |
Width | 8 cm |
Height | 2 cm |
Weight | 10 g |
