Merten Frame

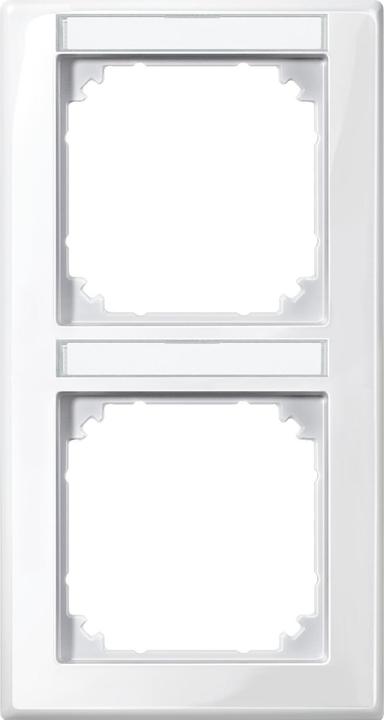

Merten Frame 2f.pws/gl 470219

Manufacturer: Merten
Description: Frame 2f.pws/gl with labeling carrier
Type: 470219
Number of units: 4
Mounting direction: vertical
Number of horizontal units: 1
Number of vertical units: 4
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: yes
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp/screw fastening
Width: 80.5 mm
Height: 151.7 mm
Depth: 10.1 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 60 mm

Merten Frame 2f.pws/gl 470219: further details for the clear identification of inserts. When the frame and central plate are removed, the labeling carrier remains on the insert. This ensures the assignment of switches, sockets, or KNX components even after renovation. Accessories: Labeling strips for M-SMART frame with labeling carrier 484100.

Delivery includes: 2 labeling strips and 2 viewing windows per frame. Material: Brilliant thermoplastic. Color: glossy polar white. EAN: 4042811033286.
