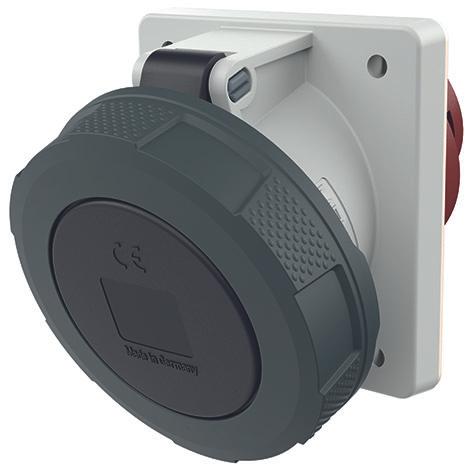

Mennekes Mounting box

Mennekes panel-mounted socket TA 2203P
Manufacturer: Mennekes
Designation: Panel-mounted socket TA 125A, 4p, 5h, 600-690V
Type: 2203P
IEC current rating: 125 A
UL/CSA current rating (if UL version required): 100 A
Voltage according to EN 60309-2: 600-690 V (50+60 Hz)
Rated voltage: 600-690 V
Rated frequency: 50-60 Hz
Number of poles: 4
Time position: 5 h
Identification colour: Black
Protection class (IP): IP67
Connection system: Screw terminal
Plug-in direction: Angled
Cable entry: Other
Material: Plastic
Contact material: CuZn
Surface treatment contacts: Untreated
Military version: No
Flange dimension vertical: 114 mm
Drill hole spacing vertical: 90 mm
Flange dimension horizontal: 110 mm
Drill hole spacing horizontal: 90 mm
Mennekes panel mounting box TA 2203P: Further details 125A 4P 5H 600-690V panel mounting box TA IP 67 with frame terminal and X-CONTACT with pilot contact. Device may only be operated with electrical interlock via pilot contact! EAN: 4015394193708.
