MDT SCN-BWM63.02

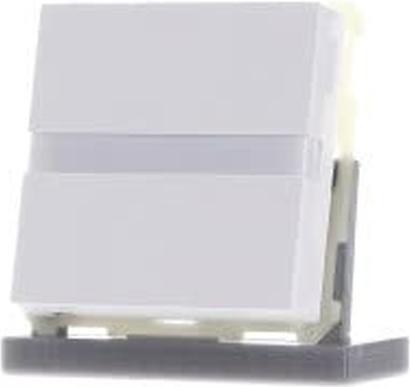

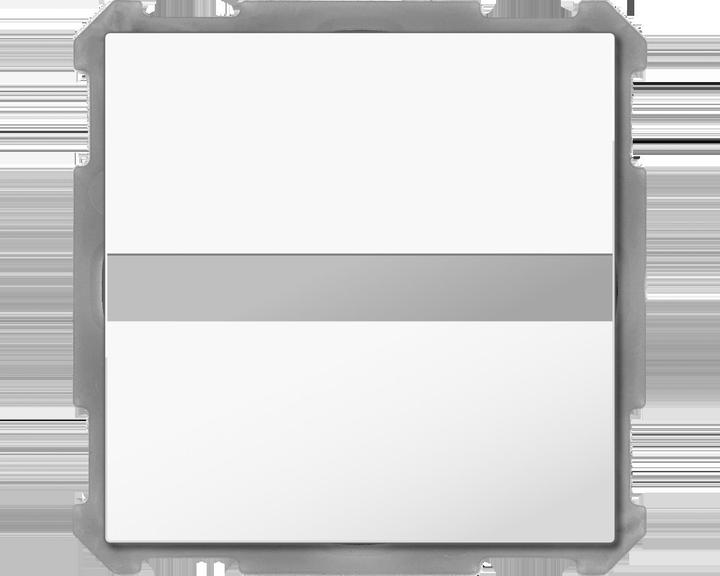

MDT technologies Motion detector SCN-BWM63.02 Manufacturer :MDT technologies Designation :Motion detector studio white/glossy Type :SCN-BWM63.02 Bus system KNX :yes Bus system KNX radio :no Bus system radio bus :no Bus system LON :no Bus system Powernet :no Other bus systems :without Radio bidirectional :no Version :Motion detector Mounting type :flush-mounted Material :Plastic Material quality :Thermoplastic Surface protection :other Finish :glossy Colour :white RAL-number (similar) :9010 Transparent :no With bus coupling :yes Extension unit input :no Operating mode switch :yes Animal track :yes Staircase monitoring :yes Response brightness adjustable :yes Teach function for response brightness :no Switch-off delay self-learning :no Optimum installation height :1.1 m Max. range to one side :5 m Range to one side :5 m Max. Max. range frontal :5 m Detection field diameter on floor :10 m Detection angle vertical :15 ° Detection angle horizontal :180 ° No. of channels :2 Min. duty cycle :1 s Max. Max. duty cycle :240 min Min. depth of device box :35 mm MDT technologies motion detector SCN-BWM63.02: further details Motion detector/automatic switch 63, studio white glossy. Mounting in switch box. Integrated bus coupling unit. Suitable for 63mm standard switch ranges e.g.: Busch-Jaeger future linear, solo, carat and Busch-axcent. Motion detector with light sensor and 2 sensors. Detection angle H 180° / V 15°, range 6-10m Ø. Suitable for pets up to 12kg. Trigger sensitivity day/night/presence individually adjustable. Detection of direction of movement. 2 light channels, 1 HVAC and alarm channel. Short-time presence to reduce overrun time. Master/slave function, scenes and logic functions. Integrated white LED night light. Day/night function, orientation light function. Locking and forced function with release time. External push-button input for automatic and manual operation. Recommended mounting height 1.05 - 1.20m. Integrated bus coupling unit. , EAN: 4251916111359.
