MDT KNX LED Controller

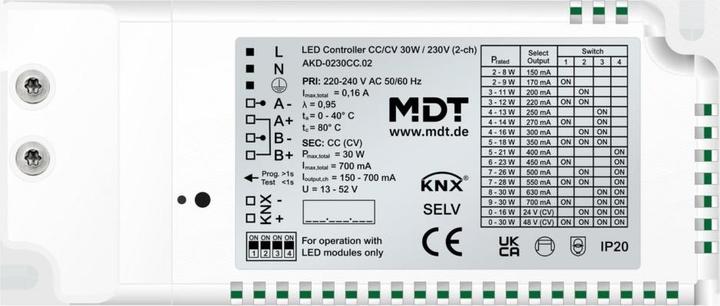

MDT technologies KNX LED Controller AKD-0230CC.02

Manufacturer: MDT technologies
Designation: KNX LED Controller CC/CV 30W/230V 2-channel
Type: AKD-0230CC.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Version: Dimming actuator
Mounting type: Flush-mounted installation
With bus coupling: Yes
Bus module removable: No
Extension input: No
On-site/manual operation: No
With LED display: No
Number of outputs: 2
Output power: 60 W
Additional power usable: No
Max. control current: 1400 mA
Voltage: 1300 mA
Control current: 1400 mA
Voltage: 13..52 V
Parallel operation possible: No
Protection class (IP): IP20

Further details:
KNX LED Controller CC/CV 30 W / 230 V 2-channel. Version with integrated power supply unit in compact design. Constant current LED controller with max. output current of 700 mA. Optimised hybrid dimming for better light quality (low flicker). Extensive application, absolute and relative dimming. Dimming range from 0.2 % to 100 %. Perfect dimming behaviour over the entire dimming range. Maximum output power 30 W over both channels. Max. output current 700 mA. Constant current selectable via DIP switch. Tunable White colour temperature control. Selectable dimming curve, individual sequences. Operating modes: 2x white, Tunable White. Automatic colour temperature control Dim2Warm. Dynamic daylight control HCL. Automatic time-dependent dimming. Day/night function. Overcurrent and temperature monitoring. Integrated power supply unit in compact design. Secondary connection cable up to 6 m. Dimensions (W x H x D): 129 mm x 54 mm x 25 mm. 3-year product guarantee. EAN: 4251916130879.
