MDT Binary input

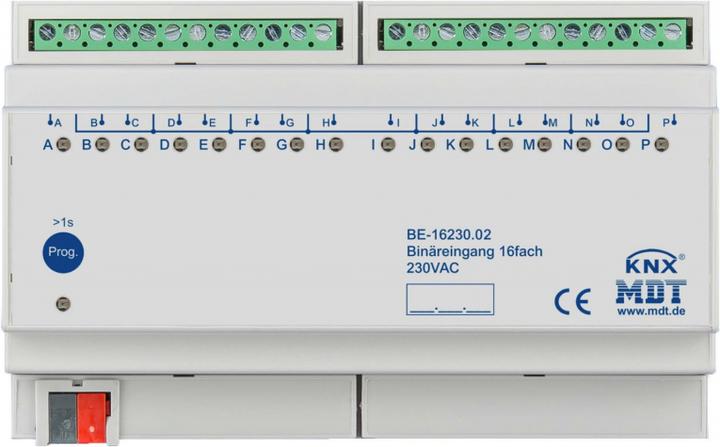

MDT technologies binary input 16-fold 8TE BE-16230.02

Manufacturer: MDT technologies
Designation: Binary input 16-fold 8TE REG, 230VAC
Type: BE-16230.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 8
With bus coupling: Yes
Bus module removable: No
LED control: No
With LED display: Yes
Number of inputs: 16
Input voltage: 230 V
Type of input voltage: AC
External query voltage required: Yes
Protection class (IP): IP20

Binary input 16-fold, 8TE, REG, version 230VAC. Version for control signals 230VAC. LED display for each channel, cable length max. 100m. For connection of push buttons, switches, window contacts. New multi-tap function, sends up to 4 values/DPTs to same or different objects. Innovative group control with long/extra long keystroke. 4 integrated logic modules, e.g., for evaluation of inputs (e.g., window closed or send second object). Normally open or normally closed operation, send contact state. Dimmer and shutter function for one- and two-button operation. Send values, forced operation. Scenes, blocking objects for each channel. Pushbutton operation with short/long pushbutton action and 2 objects. Cyclic sending, sending after reset.
