MDT Binary input

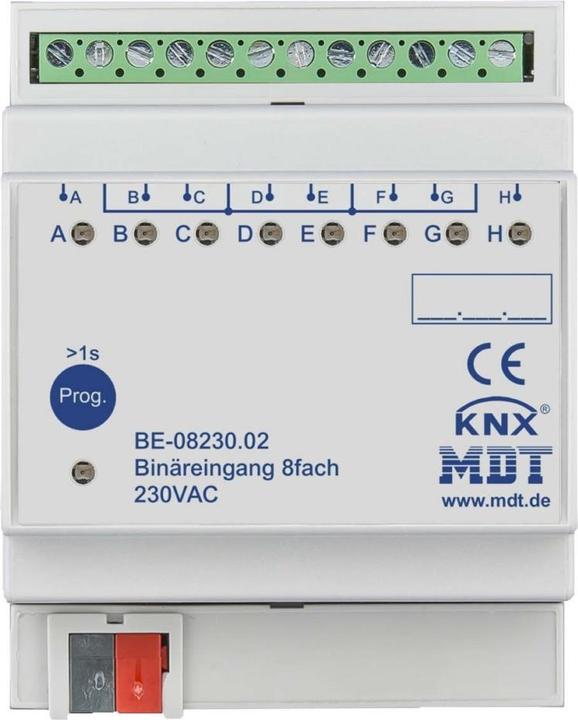

MDT Technologies Binary Input 8-fold 4TE BE-08230.02

Manufacturer: MDT Technologies
Description: Binary Input 8-fold 4TE REG, 230VAC
Type: BE-08230.02
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: None
Bidirectional Wireless: No
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: Yes
Bus Module Removable: No
LED Control: No
With LED Display: Yes
Number of Inputs: 8
Input Voltage: 230 V
Type of Input Voltage: AC
Externally Required Query Voltage: Yes
Protection Class (IP): IP20

Further Details: Binary input 8-fold, 4TE, REG, version 230VAC. Version for control signals 230VAC. LED display for each channel, maximum cable length 100m. For connecting buttons, switches, window contacts. New multi-tap function sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra-long button press. 4 integrated logic modules, e.g., for evaluating inputs (e.g., window closed or sending a second object). Normally open or normally closed operation, sending contact status. Dimmer and blind function for single and double button operation. Sending values, forced operation. Scenes, blocking objects for each channel. Button operation with short/long button press and 2 objects. Cyclic sending, sending after reset.
