MDT Binary input

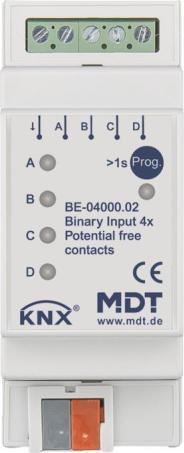

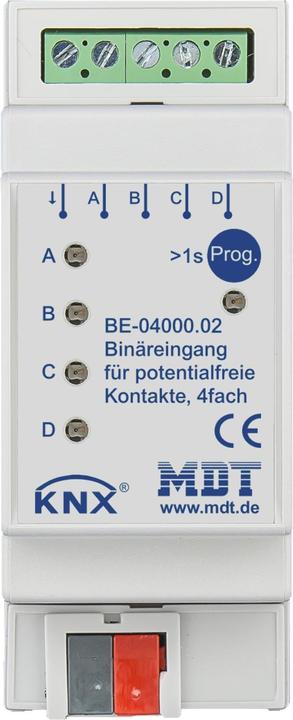

MDT technologies binary input 4-fold 2TE BE-04000.02

Manufacturer: MDT technologies
Designation: Binary input 4-fold 2TE REG, potential-free
Type: BE-04000.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 2
With bus coupling: Yes
Bus module removable: No
Control LED: No
With LED display: Yes
Number of inputs: 4
Type of input voltage: Pulsed
Protection class (IP): IP20

More details:
This binary input is a 4-fold, 2TE, REG, potential-free version designed for the connection of potential-free contacts. It features an LED display for each channel with a maximum cable length of 100m. Suitable for connecting push buttons, switches, and window contacts. The new multi-tap function allows sending up to 4 values/DPTs to the same or different objects. It includes innovative group control with long/extra long keystroke options.

The device has 4 integrated logic modules for evaluating inputs, such as window closed or sending a second object. It supports normally open or normally closed operation and can send the contact state. Additionally, it offers dimmer and shutter functions for one- and two-button operations, sending values, forced operation, scenes, and blocking objects for each channel. Pushbutton operation is available with short/long button presses and 2 objects. It also features pulse and switch counters with extensive counter functions, suitable for 30ms S0 pulses. Cyclic sending and sending after reset are supported, along with an internally generated 12V contact voltage.
