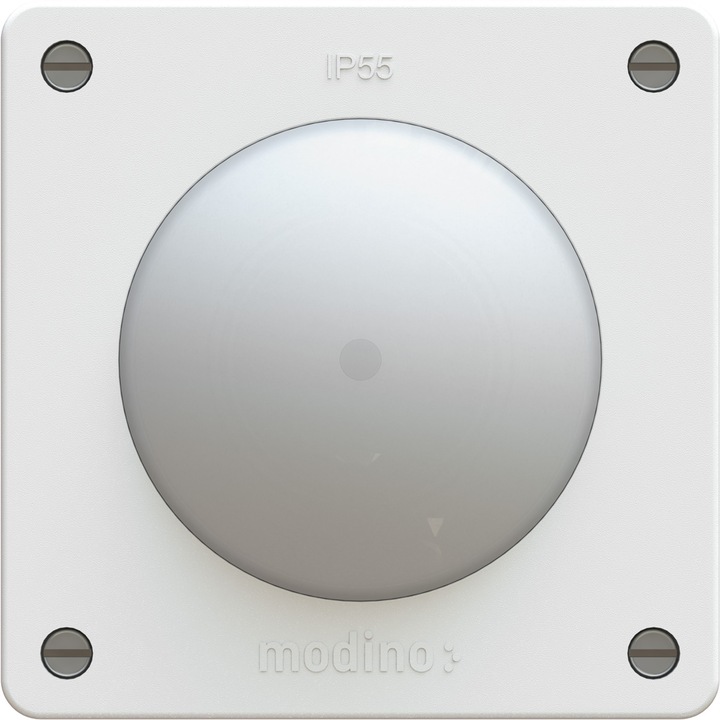

Max Hauri exo pushbutton A/R illuminated IP55

Illuminated push button switch (normally open/normally closed) with white LED, size 1x1, design: flush-mounted, current: 10A, voltage: 250V, additional function: front lens with terminal blocks, installation height: 31mm, installation depth: 29mm, color: white, IP protection class: IP55, modino exo.

This push button is mounted in a device box in the wall. It allows switching from multiple locations via minute switches or step switches. Thanks to the terminal blocks, the connection is quick and easy. The white LED illumination can be used either as an operating indicator or as permanent lighting for easy location in the dark.

The IP55 protection class includes complete dust and touch protection (IP5X) as well as protection against water jets (IPX5). This protection is ensured when the IP55 plug is inserted and the flap cover is closed. With its IP55 rating, it also meets all requirements of the standard SN 441011.

The modino exo switch and socket program stands for guaranteed durability and Swiss design. It is the right solution for harsh environments in buildings, in industry, in public facilities, and in recreational areas. The antibacterial surface reduces the risk of infection from frequent contact, e.g., in public spaces.
