Markmüller BAMATO - Metal band saw BMS-275, 400V

BAMATO Metal Band Saw BMS-275 (400V)

The BAMATO Metal Band Saw BMS-275 is a precise machine made of solid cast construction. A powerful gear drive and two speeds are additional highlights. The integrated coolant system and the infinitely variable hydraulic lowering of the saw frame ensure perfect cutting results. For optimal user comfort, the saw unit features a manometer to display the blade tension, can pivot up to 60°, and is equipped with an automatic shut-off.

• Stable and solid base frame
• Coolant system with dosing valve controllable via control panel
• Comfortable working height of 910 mm
• Rigid and robustly designed saw frame

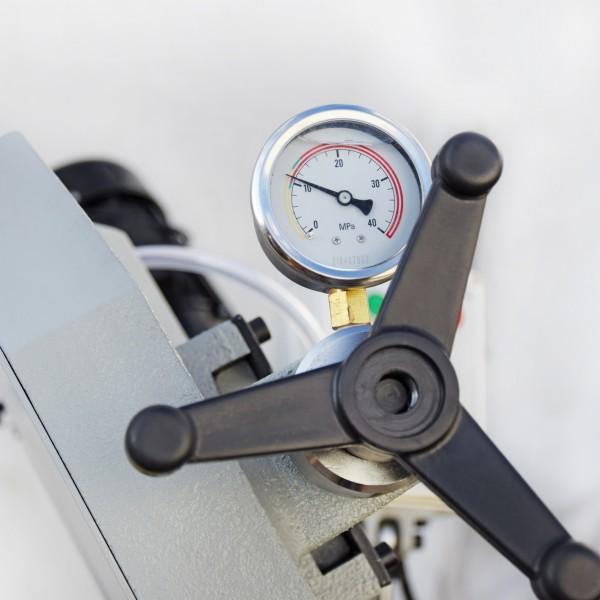

• Manometer for displaying blade tension
• Pivoting saw unit with quick adjustment up to 60° for miter cuts
• Standard with automatic shut-off after material cut
• Vise with quick adjustment and workpiece stop
• Ball-bearing blade guides for perfect cutting results
• Smooth and vibration-free operation thanks to solid cast construction

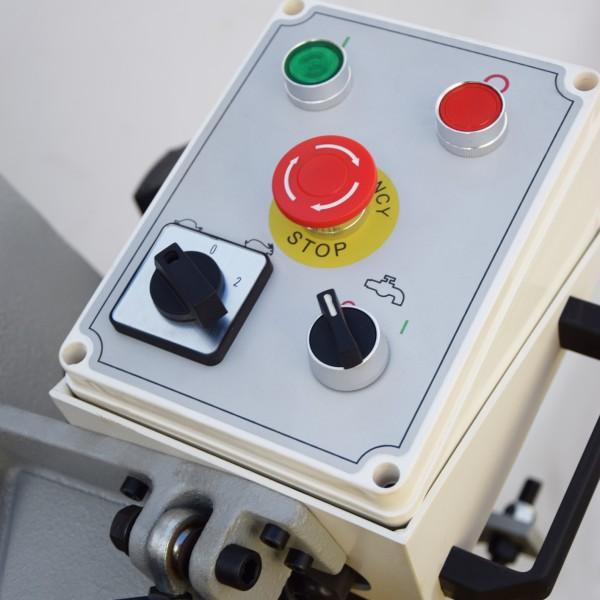

• Two blade speeds conveniently adjustable via control panel
• Infinitely variable hydraulic lowering of the saw frame

Delivery includes 1 x saw blade

Technical Data:

General Data:

• Net weight (in kg): 195
• Gross weight (in kg): 235

Motor Data:

• Motor power S1 in watts: 1500
• Motor power S6 in watts: 2200
• Voltage: 400V / 50Hz

General Dimensions of the Machine:

• Installation dimensions in mm: 1200 x 720 x 1495
• Pivot range: up to 60°

Cutting Capacities:

• Cutting capacity round Ø 90° in mm: 225
• Cutting capacity round Ø 45° in mm: 160
• Cutting capacity round Ø 60° in mm: 100
• Cutting capacity LxH 90° in mm: 200 x 200
• Cutting capacity LxH 45° in mm: 160 x 160
• Cutting capacity LxH 60° in mm: 100 x 100

Band Saw Details:

• Saw blade in mm: 2450 x 27 x 0.90
• Saw blade speed in m/min: 37.5 / 75

Shipping Details:

• Length of packaging in mm: 1350
• Width of packaging in mm: 580
• Height of packaging in mm: 970
• Shipping weight in kg: 235.00.
