Manuflex Construction portal

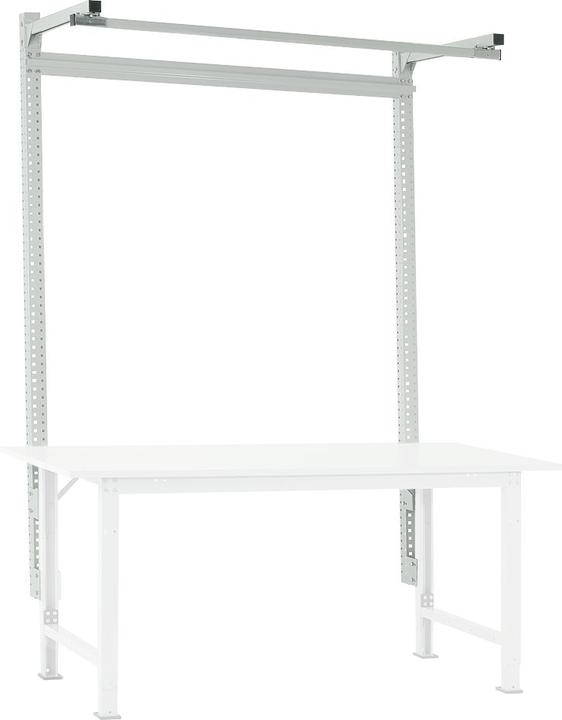

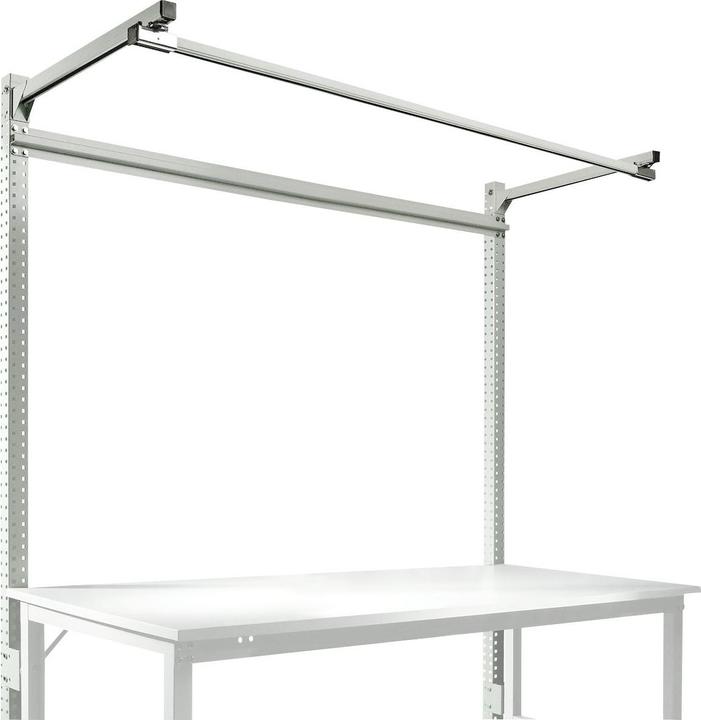

The Packpool assembly portal features an arm and is suitable for all Packpool packing tables with a width of 1500 to 2000 mm. It has 2 vertical and 1 horizontal steel profiles, as well as a rail-mounted arm. The assembly portal is made of profile steel with holes on three sides in a 30 mm grid for attaching the assembly components and is finished with high-quality powder coating. It has a usable height of 1500 mm and can be adjusted in height in 30 mm increments. With an overall height of 2100 mm and a depth of 700 mm, the Packpool assembly portal with arm has a load capacity of up to 40 kg, and without the arm, it can support up to 120 kg. The assembly portal comes with fittings for attachment to the table frames.

Additional details:

• For Packpool packing tables
• Profile steel with holes on three sides in a 30 mm grid for attaching assembly components
• 2 vertical, 1 horizontal steel profile, and a rail-mounted arm
• High-quality powder-coated profiles
• Dimensions: H 2100 x D 700 mm
• Width options: 1500 mm, 1750 mm, or 2000 mm
• Includes fittings for attachment to the table frames
• Load capacity without rail-mounted arm: 120 kg
• Load capacity with arm at a depth of 350 mm: 40 kg
• Load capacity with arm at a depth of 500 mm: 35 kg
• Load capacity with arm at a depth of 700 mm: 25 kg.
