Manuflex Assembly portal for basic table SPEZIAL Work table/workbench system UNIVERSAL/PROFI

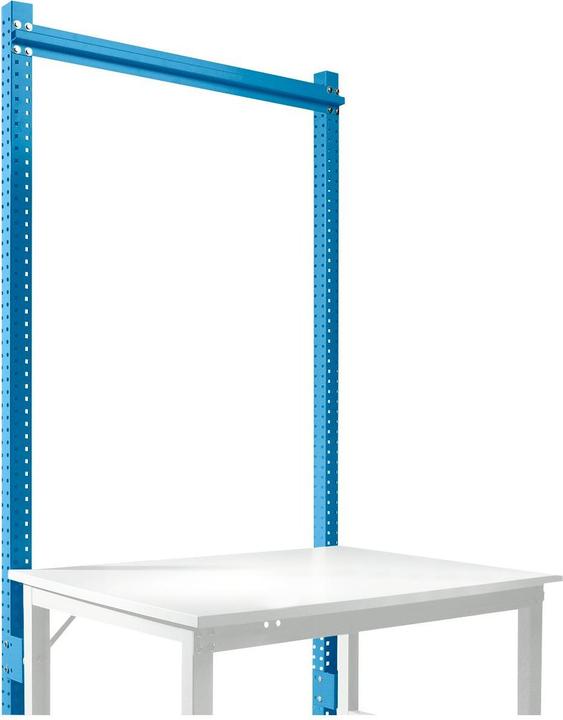

The Manuflex assembly portal allows for the use of the workspace above a basic table from the Universal Spezial or Profi Spezial series. It is available in four different widths. Perfectly suited for the basic tables of the Universal Spezial series and the Profi Spezial workbenches, it enables the use of the workspace above the table or workbench surface. With a usable height of 1500 mm, you can order the Manuflex assembly portal in widths of 1250 mm, 1500 mm, 1750 mm, or 2000 mm. The assembly portal has a depth of 55 mm. The individual assembly profiles have a width of 60 mm, including the fittings for attachment to the tabletop. The assembly portal is high-quality powder-coated and made of profile steel with holes on three sides in a 30 mm grid. These assembly components can be height-adjusted in 30 mm increments. Use the Manuflex assembly portal for tools or devices, as it can support up to 120 kg.

Additional details:

• For the use of the workspace above the table or workbench surface
• Assembly portals turn a work table or workbench into a fully equipped workstation
• For tools, devices, or workplace lighting
• Usable height: 1500 mm
• Depth: 55 mm
• Width: 60 mm (dimensions include fittings for attachment to the table frames)
• Total height: 2100 mm
• For work tables of the Universal Spezial systems and Profi Spezial workbenches
• 2 assembly profiles and one cross stabilizing brace including attachment fittings
• High-quality powder-coated
• Made of profile steel with holes on three sides in a 30 mm grid, height-adjustable in 30 mm increments
• Load capacity: 120 kg
• Always expandable
• 9 RAL colors to choose from
• Width options: 1250 mm, 1500 mm, 1750 mm, or 2000 mm.
