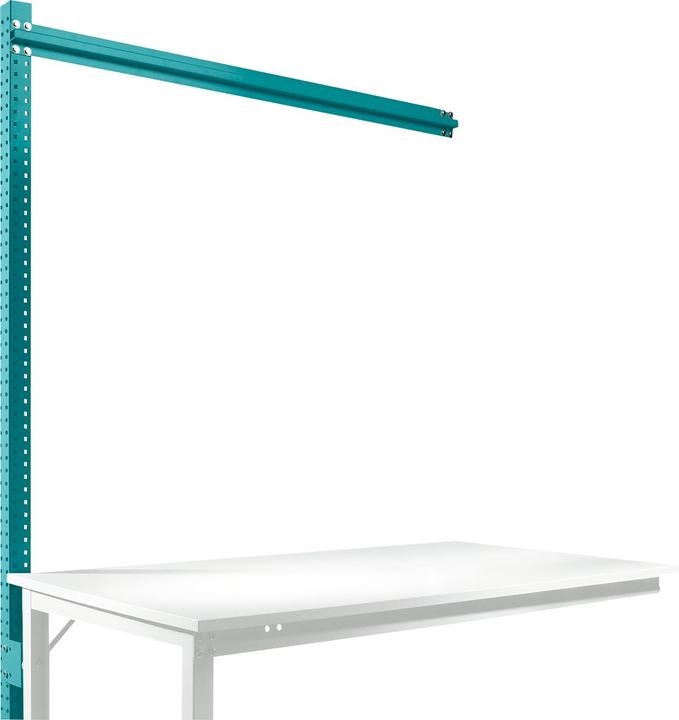

Manuflex Assembly portal f. Extension table STANDARD Worktable/workbench system UNIVERSAL/PROFI

This Manuflex assembly portal is suitable for attachment tables from the Universal Standard and Profi Standard series with a depth of 700 mm. It offers a total height of 2100 mm and serves to expand the workspace above the table or workbench surface. With a usable height of 1500 mm, a width of 60 mm, and a depth of 55 mm, including the fittings for attachment to the table frames, the Manuflex assembly portal is optimally designed.

It consists of an assembly profile with a cross stabilization brace, and all components are made from high-quality powder-coated profile steel, which is perforated on three sides in a 30 mm grid. The perforated and slotted panels, as well as the shelf console, are adjustable in height in 30 mm increments, allowing for individual mounting of tools, devices, or lighting.

Overall, the Manuflex assembly portal can support a total load of 120 kg. Please note that an attachment table from the mentioned series is required to use the assembly portal.

Additional details:

• For use of the workspace above the table or workbench surface
• Assembly portals turn a work table or workbench into a fully equipped workstation
• For tools, devices, or workplace lighting
• Usable height: 1500 mm
• Depth: 55 mm
• Width: 60 mm (dimensions include fittings for attachment to the table frames)
• Total height: 2100 mm
• For attachment tables from the Universal Standard and Profi Standard systems, depth 700 mm
• 1 assembly profile and 1 cross stabilization brace including mounting fittings
• High-quality powder-coated
• Made from profile steel perforated on three sides in a 30 mm grid, height adjustable in 30 mm increments
• Load capacity: 120 kg
• Expandable at any time
• 9 RAL colors to choose from.
