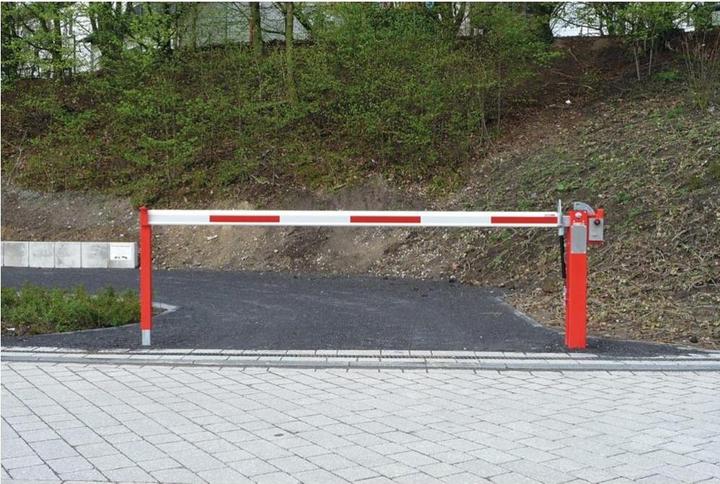

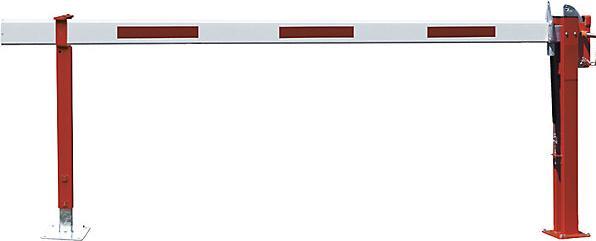

Mannus Hand barrier

Manual barrier with a fixed support point and a barrier length of 4.5 m. It features a gas spring without protruding counterweights and red-white reflective foil on both sides. The barrier arm includes an anti-sit rod and is equipped with a padlock for locking as standard.

All steel parts are hot-dip galvanized and duplex powder-coated in traffic red RAL 3020. The barrier arm is a one-piece construction made from a square steel tube measuring 108 x 46 mm (height including a 15 mm anti-sit web). It is powder-coated in pure white RAL 9010 and has red-white reflective foil on both sides. The main post for embedding consists of two steel tubes measuring 120 x 40 x 3 mm. The vertical adjustment of the barrier arm is possible within ±5%. It contains stainless steel screws for locking with a padlock (not included) and consists of a steel tube measuring 70 x 40 x 3 mm for embedding. The height is adjustable from -100 mm to +150 mm.

Upon request, profile cylinders and triangular locks (which can be retrofitted and modified at any time), lock boxes on support columns, and ground anchors for embedding in concrete are available (foundation work must be carried out on-site).
