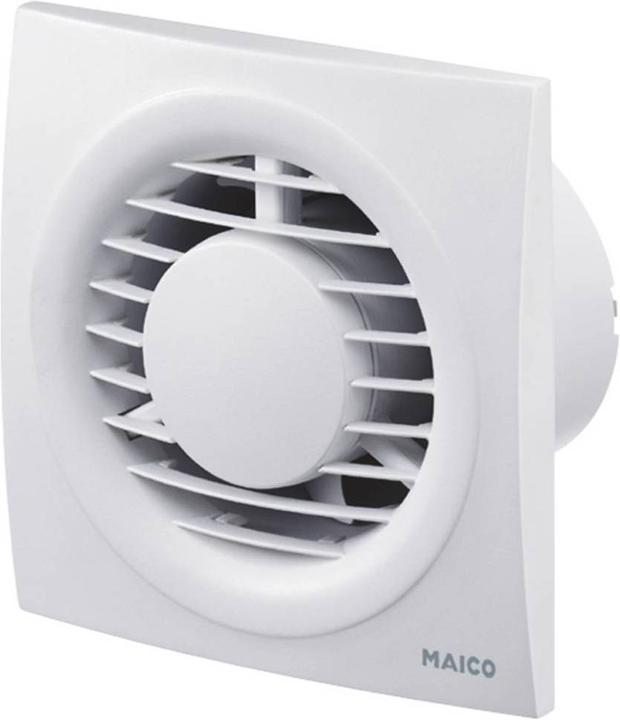

Maico Wall and ceiling ventilator ECA piano Standard

Standard version - On/Off via light switch or separate switch. - Speed adjustable. - Due to the phase-cutting technology, a physically induced humming noise may occur at lower speed ranges.

Features:

• Particularly quiet thanks to innovative piano impeller.
• Tool-free removable cover for easy cleaning.
• Compatible with ECA 100 ipro and previous ECA models DN 100, same position for screw holes and cable entry.
• With VDE mark.
• Protection class IP X4 for safety in bathrooms.
• Protection class II.
• Integrated non-return flap, springless, durable, and stable.
• Color traffic white similar to RAL 9016.
• Suitable for pipe DN 100.
• Housing made of impact-resistant plastic.
• Thermal overload protection.

Motor:

• Robust motor with ball bearing, maintenance-free.
• Suitable for continuous operation.

Installation instructions:

• Simplest installation, as the cover is removable without tools.
• Wall and ceiling mounting possible; for ceiling mounting, drilling in the cover is necessary.

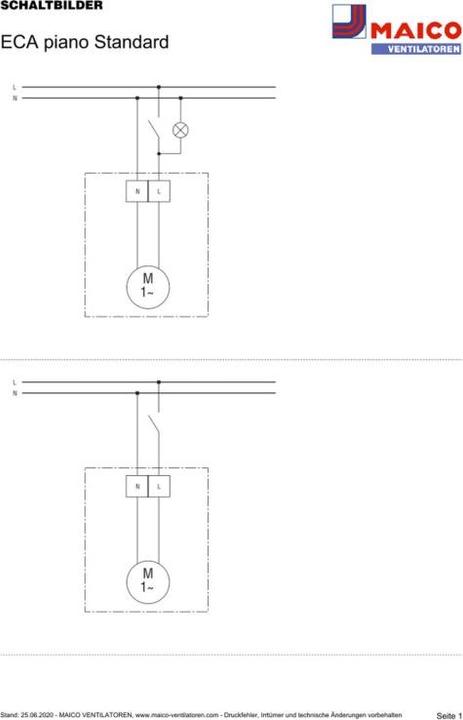

Electrical connection:

• Electrical connection flush-mounted.

Safety instructions:

• All ECA piano devices can be used in protection area 2 according to DIN VDE 0100-701.
• Details see planning notes.

Article: ECA piano Standard

• Version: Standard version
• Airflow: 80 m³/h
• Speed: 2400 1/min
• Speed adjustable: yes
• Reversibility: no
• Voltage type: Alternating current
• Rated voltage: 230 V
• Mains frequency: 50 Hz / 60 Hz
• Rated power: 8 W
• IMax: 0.06 A
• Protection class: IP X4
• Power supply cable: 3 / 1.5 mm²
• Installation location: Wall / Ceiling
• Installation type: Surface-mounted
• Installation position: Any
• Material: Plastic
• Color: Traffic white, similar to RAL 9016
• Weight: 0.5 kg
• Weight with packaging: 0.61 kg

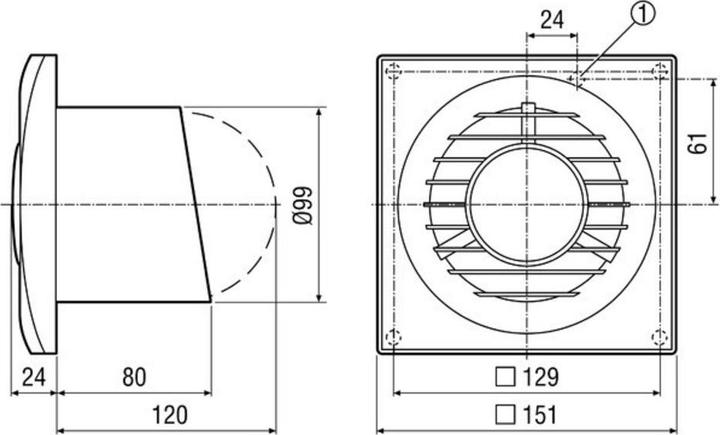

• Nominal diameter: 100 mm
• Width: 151 mm
• Height: 151 mm
• Depth: 104 mm
• Width with packaging: 160 mm
• Height with packaging: 160 mm
• Depth with packaging: 130 mm
• Medium temperature at IMax: 40 °C
• Sound pressure level: 26 dB(A) / distance 3 m, free field conditions.
