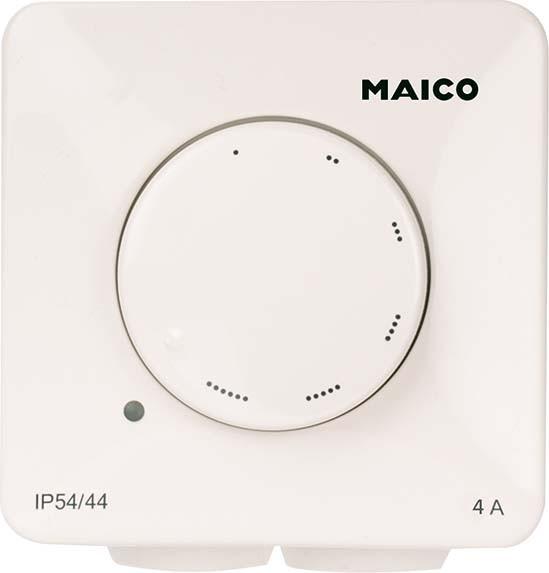

Maico STX 4 Speed controller f. AP inst. max 4A

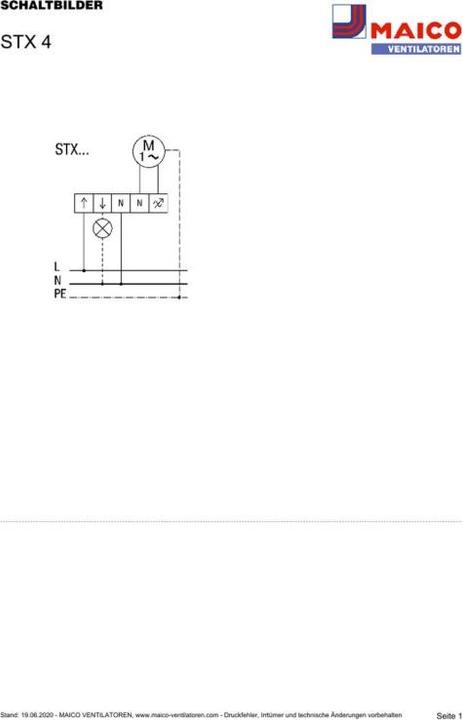

Speed controller for continuous regulation of fans. Minimum speed adjustable. Usable for surface-mounted and flush-mounted installation, exception: STX 4 is only for surface-mounted installation. Operating principle: phase-cut control. Recommended distance from radio and television devices: 3 m. Turning the control knob switches the fans on to maximum speed. Further turning reduces the speed. Splash-proof. Built-in temperature cut-off protection. Orange LED operating indicator. CE mark. Includes replacement fuse. Additional switching contact (230 V) for example for controlling a damper. Due to the phase-cut technology, a physically induced humming noise may occur at lower speed ranges. Therefore, for quiet fan operation, use 5-step transformers TRE... for speed regulation in rooms where noise is a concern. Mounting on walls is possible; avoid ceiling installation due to heat development.

STX 1.5, STX 2.5:
• Width x Height x Depth for surface-mounted installation: 82 mm x 89 mm x 65 mm
• Width x Height x Depth for flush-mounted installation: 50 mm x 50 mm x 35 mm

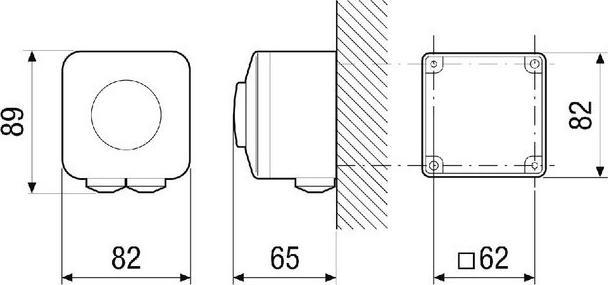

STX 4:
• Width x Height x Depth for surface-mounted installation: 82 mm x 89 mm x 65 mm

Item: STX 4

• Voltage type: Alternating current
• Rated voltage: 230 V
• Maximum load: 4 A
• Minimum load: 0.4 A
• Protection class: IP 44
• Installation type: Surface-mounted
• Material: Plastic
• Color: white, similar to RAL 9010
• Weight: 0.23 kg
• Weight with packaging: 0.26 kg
• Width: 82 mm
• Height: 89 mm
• Depth: 65 mm
• Width with packaging: 85 mm
• Height with packaging: 95 mm
• Depth with packaging: 70 mm.
