Maico Outer flap,electric

Ratings
Delivered between Thu, 30.4. and Sat, 9.5.
free shipping

Product details

  • Electric closure flap for weather protection and cold air barrier when the fan is turned off.
  • MK with gear motor: rated power 3 W, rated current 0.015 A.
  • BK with bimetal flap: rated power 25 W, rated current 0.01 A, inrush current 1.8 A - 1s. Speed control only with speed controller STX 2.5.
  • Design according to protection class II (without protective earth connection).
  • Opens and closes when the fan is turned on and off.

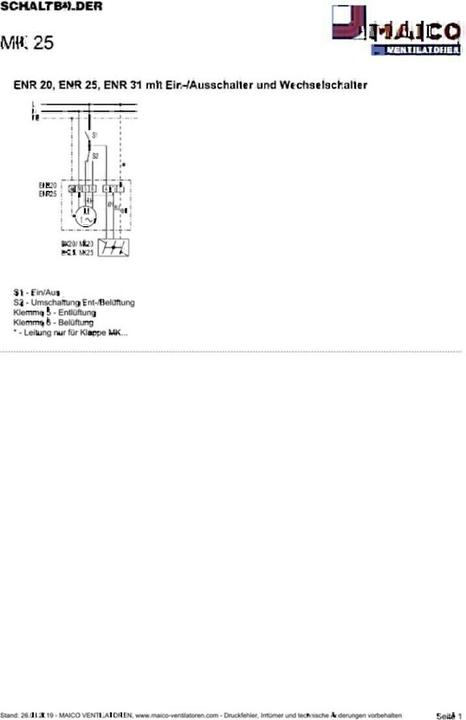

  • MK requires a 4-wire power supply.
  • BK requires a 3-wire power supply.
  • Special versions with limit switch available upon request. The limit switch activates when the closure flap is fully open.

Article:
MK 25

  • Voltage type: alternating current
  • Rated voltage: 230 V
  • Mains frequency: 50 Hz
  • Rated power: 3 W
  • INenn: 0.015 A
  • Maximum load: 0.015 A
  • Protection class: IP 55
  • Drive: gear
  • Installation: external
  • Installation location: wall
  • Installation position: vertical
  • Material: plastic
  • Color: traffic white, similar to RAL 9016
  • Slat color: silver gray
  • Weight: 1.45 kg
  • Weight with packaging: 1.64 kg
  • Flap type: electric
  • Suitable for nominal diameter: 250 mm
  • Width: 370 mm
  • Height: 370 mm
  • Depth: 50.5 mm
  • Width with packaging: 385 mm
  • Height with packaging: 380 mm
  • Depth with packaging: 60 mm
  • Ambient temperature: 40 °C.

30-day right of return
24 Months Warranty (Bring-in)
