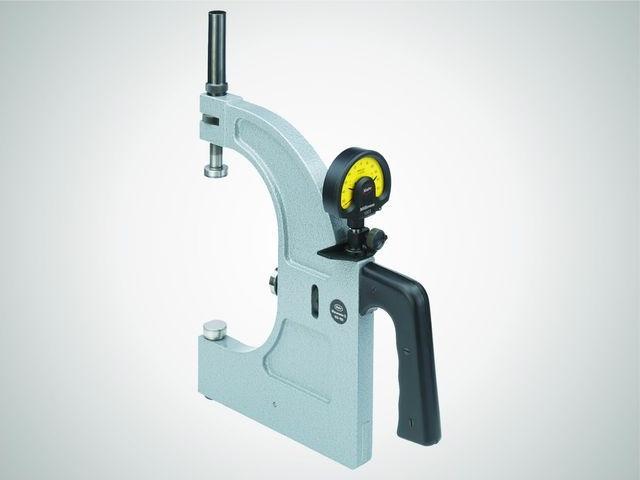

Mahr Fine pointer pharyngeal gauge with handle Marameter S

Design: Sturdy, rigid frame with a handle. Anvil and counter gauge made of stainless, hardened steel. Measuring surfaces equipped with carbide and beveled at the front for easier insertion. Designed for measuring narrow centering edges extending beyond the frame width. Adjustable via end dimensions. Center stop adjustable for setting to workpiece center. High measurement accuracy. The weight of the device rests on a solid gauge during measurement and does not affect the measurement result. Constant measuring force provided by an integrated measuring force spring. Usable with all display devices (not included in the price) with an 8 mm clamping shank. Preferred is indicator No. 434674. Tolerance deviations of the workpiece can be read numerically on the display device. Laterally protruding frame for protection against impacts during measurement and when setting down. Note: Measurement range up to 500 mm available upon request. Delivery includes: Without indicator, including wooden box.
