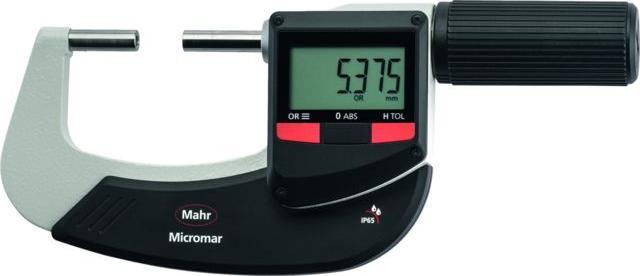

Mahr Digital outside micrometer with interchangeable measuring inserts

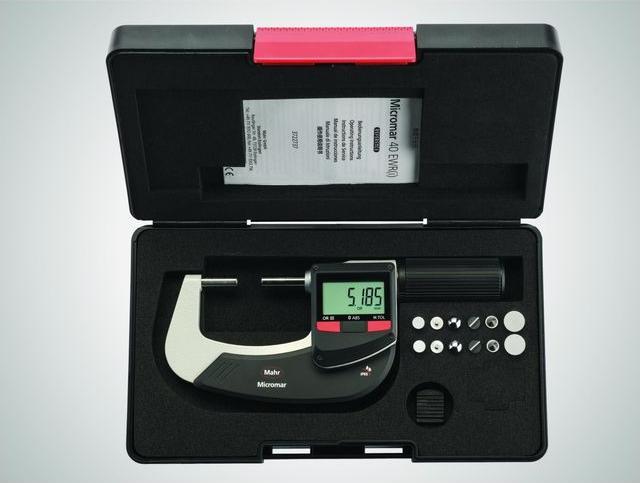

Design: Calipers with a non-rotating spindle and quickly interchangeable measuring inserts. A spindle pitch of 5 mm per revolution reduces adjustment time. The display features 10 mm large digits on a high-contrast background. A practical HOLD function allows the measurement value to be frozen for safe reading. Switch between relative and absolute measurement. Zeroing can be done at any position. A convenient tolerance display with additional warning limits helps the operator determine whether and how the workpiece falls within tolerance limits. The REFERENCE measuring system saves and retains the set zero position even after being turned off and on again. The lock function prevents measurement errors caused by accidentally pressing the control buttons. Delivery includes: 1 battery No. 081560 size CR2032. 6 pairs of interchangeable measuring inserts with: flat measuring surfaces Ø 6.5 mm, cup measuring surfaces Ø 11.3 mm, reduced measuring surfaces Ø 2 mm, spherical measuring surfaces Ø 7 mm, cutting edges 0.75×7 mm, cone 60° Ø 0.5 – 5.5 mm.
