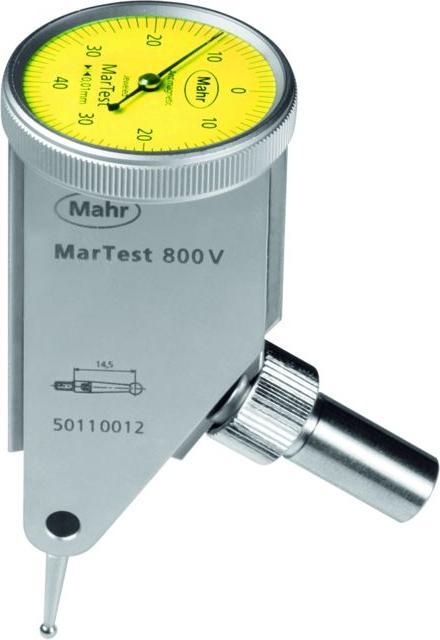

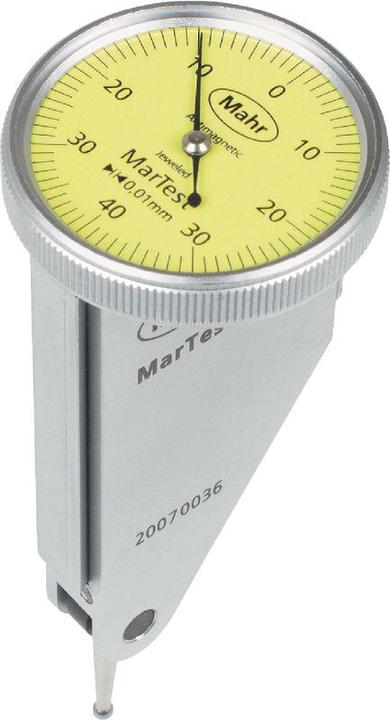

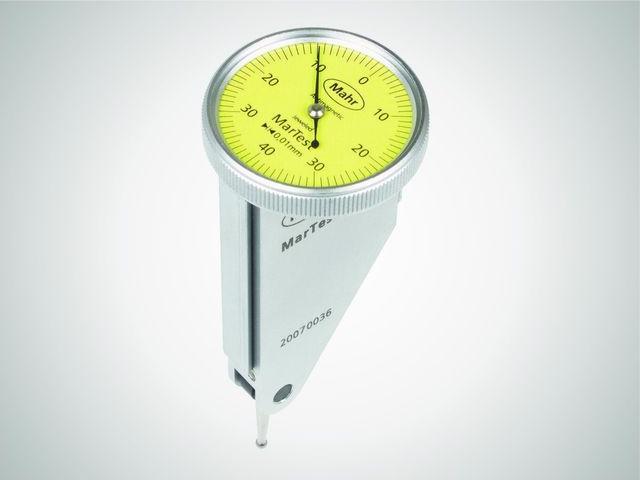

Mahr Dial test indicator Martest 800
Product details
The Martest 800 feeler gauge from Mahr is a precise measuring instrument specifically designed for use in workshop conditions. With an accuracy of ±0.01 mm and a maximum measuring range of 40 mm, this device is excellent for various applications, including runout tests, internal measurements, as well as checking for parallelism and flatness. The device features a matte chrome-plated protective housing that is not only robust but also provides a sealed display to prevent the ingress of liquids. The measuring probe with a carbide ball is pivotable by 220° and replaceable, allowing for flexible handling. Additionally, the shockproof measuring mechanism ensures high durability and reliability. The high-contrast dial and integrated dovetail guides facilitate reading and handling of the device, while the automatic adjustment of the probing direction further enhances measurement accuracy.
- Sealed display against liquid ingress
- Matte chrome-plated protective housing for durability
- 220° pivotable and replaceable measuring probe
- Shockproof measuring mechanism for high reliability.
Display type | Analogue |
Accuracy | 0.01 mm |
Measuring spindle diameter | 2 mm |
Item number | 23956680 |
Manufacturer | Mahr |
Category | Dial gauge + micrometer |
Manufacturer No. | 4302200 |
Release date | 26.1.2023 |
Material | Hard metal |
Material group | Metal |
Display type | Analogue |
Measuring direction | Axial |
Accuracy | 0.01 mm |
Measuring spindle diameter | 2 mm |
CO₂ emissions | 0.7 kg |
Climate contribution | CHF 0.11 |
Scope of delivery | Checking parallelism and flatness and for aligning workpieces., Including clamping spigot ⌀ 8 mm. Application: As an accurate comparative measuring device for checking the nominal dimension deviation for concentricity tests, Internal measurements |

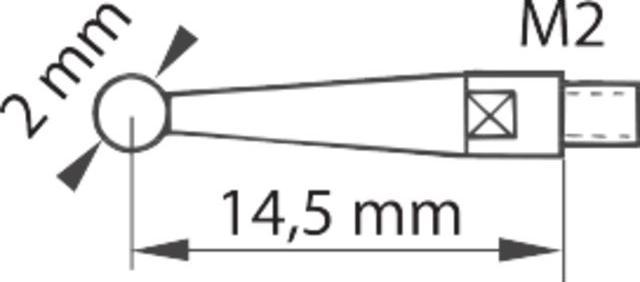

Length | 14.50 mm |
