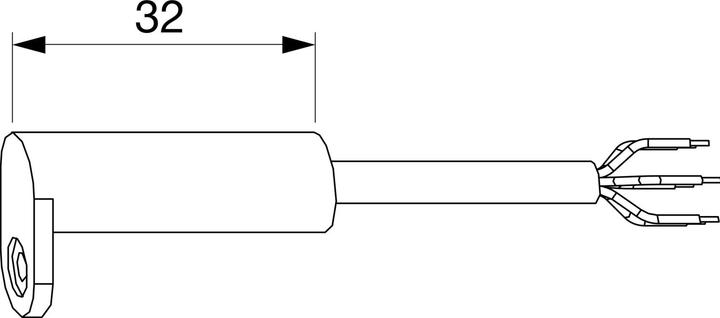

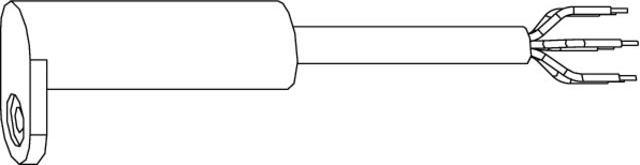

Maco TRONIC reed contact combi opening/closing monitoring, cable 6m, silver

With external field monitoring, incl. 6 metre cable (0.14 mm²).IMPORTANT: The earliest switch-on point of the reed contact is when the locking roller is at least 50 % above it.normally open contact (closed when a magnet is attached) for locking or opening monitoring.Normally open contact (contact opens when manipulated with an external magnet)for external field monitoringSabotage lineAlarm on:Opening of the window/window doorOpening of the oliveViolent displacement of a locking pinManipulation with external magnetic fieldInterruption of the tamper lineAttention: Never use a bulb continuity tester and never exceed the technical data of the reed contact.The pin assignment must be determined by measuring with a commercially available digital multimeter with a continuity tester in the following sequence:Determining the tamper line:Wire pair always has a connectionNo change when the magnetic NO contact is applied:Wire pair has a connection when the magnet is appliedWhen the magnet is removed, the contact opensOpening contact (external field contact):Wire pair has a connection when the magnet is not appliedIf the magnet is placed directly on the face of the magnetic switch sleeve, without an air gap, the connection opensTechnical data:Normally open contact, normally closed contact: A/NO contact, B/NC contactConnection type: standard cable 2, 4, 6 metres, LIYY 6 x 0.14 mm²Contact load: 10 wattsSwitching voltage: max. 100 V DCSwitching direct current: 0.5 ATemperature with fixed cable: -25° C to +75° CTemperature with moving cable: -5° C to +50° CIngress protection to DIN 40050: IP 68VdS opening monitoring: G 108015 VdS CVdS Locking monitoring: G 108015 VdS CVdS Combined locking and opening monitoring: G 108015 VdS CInstallation note:When installing the magnetic switch, a hole of min. 10 mm must be provided. Fasten the magnetic switch with the 3 mm screw supplied. The cable ends of the magnetic switch must be routed out of the frame for connection to the alarm system.
