Maclean Motion detector

Maclean is a global market leader in specialty cables and accessories for home theater, hi-fi systems, and PC connections. The company's market position has been built over a period of more than 10 years. Each product is designed by a team of designers who, thanks to their knowledge and skills, can create something extraordinary, just like in the case of this device.

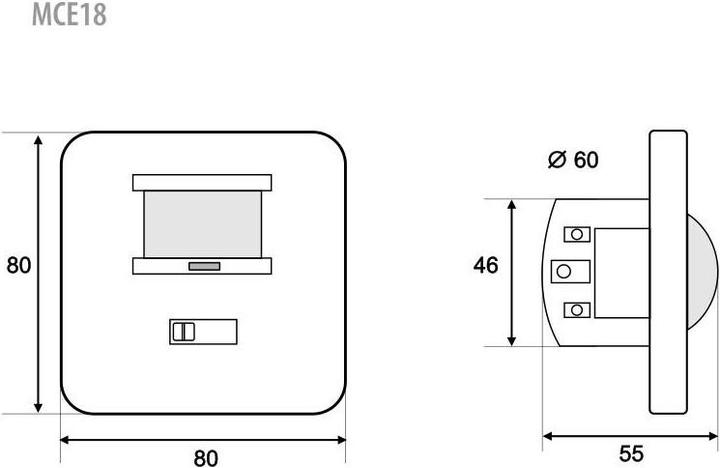

High-quality wall sensor for installation in a 60 mm box. With our sensor, you save on electricity costs as the lighting is only turned on when needed. Detection angle: 160°. The next-generation infrared sensor features high stability, an attractive and practical appearance, easy installation, and a large detection range. It automatically detects day and light at night. Utilizes SMT technology, compliant with European standards. It is intended for automatic lighting control in apartments, hotels, offices, stairwells, hallways, basements, restrooms, etc.

Specification:

• Operating voltage: 220-240 V AC / 50 Hz
• Detection angle: 160°
• Light sensitivity adjustment: 3-2000 LUX
• Detection range: 4–9 m (<24 °C)
• Motion detection speed: 0.6 ~ 1.5 m/s
• Maximum load: 500 W (bulb)
• Adjustable sound sensitivity: 30 dB ~ 90 dB
• Operating temperature: -20 ~ +40 °C
• Operating humidity: <93 % RH
• Installation height: 1 m ~ 1.8 m
• Protection class: IP20
• Built-in 2.5 A fuse
• For use with incandescent bulbs only
• Lighting time adjustment: 10 sec. ± 3 sec. (min.); 7 min. ± 2 min. (max.)
• Power consumption: 0.45 W (operating mode); 0.1 W (standby mode)

Set includes:

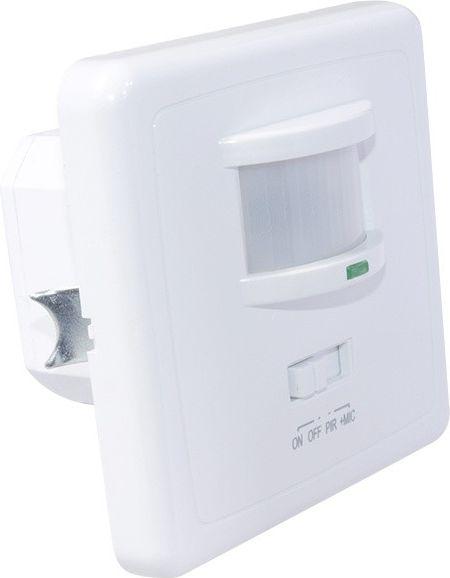

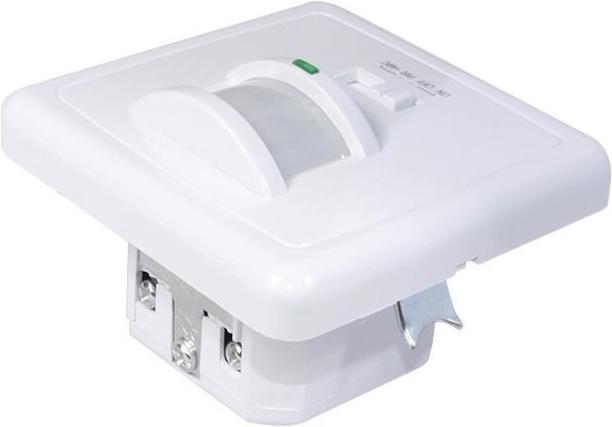

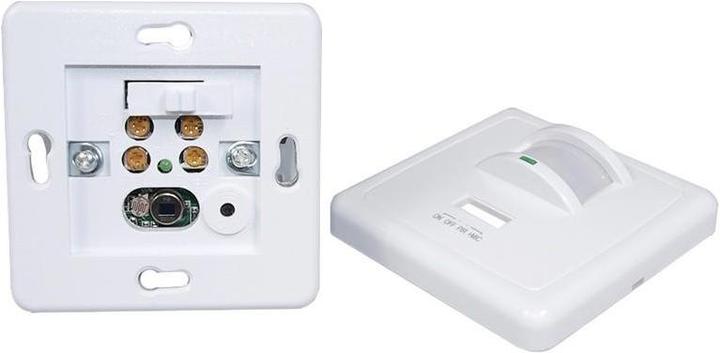

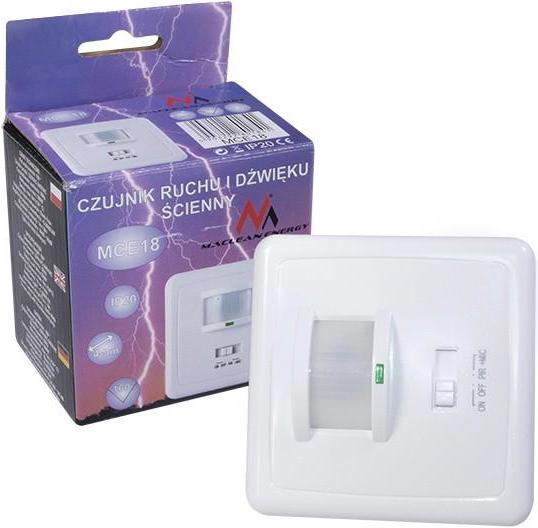

• Wall-mounted sound motion sensor MCE18
• User manual
• Manufacturer's packaging
• Purchase receipt

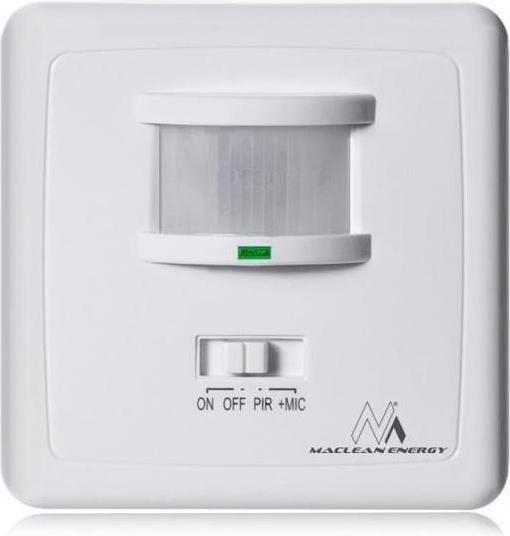

4 operating modes:

• ON – Light/device turned on
• OFF – Light/device turned off
• PIR - Works with a motion sensor - sensitivity setting (the light turns on...
