Maclean MCE467 -

The MCE467 motion detector is a device that operates by turning on a circuit and then turning it off after a certain period when an object is detected that emits infrared radiation. It is ideal for the automatic control of lighting in a room. The PIR sensor is designed to accurately detect movements and respond to temperature changes caused by objects moving within its field of view. It works based on infrared technology, which allows it to detect the heat emitted by the human body.

With a detection angle of 360° and a detection range of up to 8 meters, it effectively monitors larger areas. The sensor is equipped with a sensitivity setting for light intensity, allowing you to adjust the detection parameters to your specific needs and environmental conditions. With our sensor, you can save on your electricity bill, as the lighting is only activated when needed.

Technical specifications:

• Power supply: 220-240V AC
• Frequency: 50 Hz
• Light sensitivity setting: <3-2000 LUX
• Rated load: 100W (LED lamp)
• Detection angle: 360°
• Detection range: 50-75-100% (selectable)
• Detection distance: max. 8 m
• Motion detection speed: 0.6 - 1.5 m/s
• Operating temperature: -20 - +40 °C
• Mounting height: 2.2m - 4.0m
• Protection class: IP20
• Automatic lighting range: 10 - 300 LUX

Lighting time setting:

• 10 sec +/- 3 sec (min)
• 30 min +/- 2 min (max)

Maximum load:

• 2000W (standard bulb)
• 1000W (energy-saving bulb)

The kit includes:

• Maclean MCE467 PIR motion detector

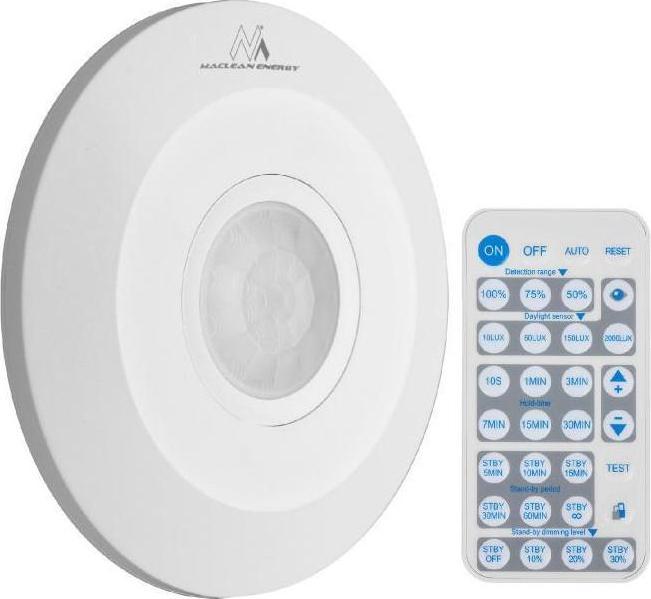

• Remote control
• User manual
• Manufacturer's packaging

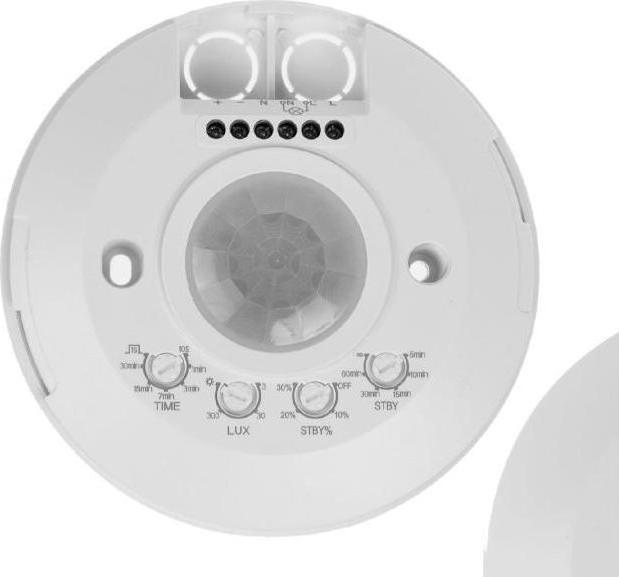

The sensor is equipped with 4 buttons:

• TIME - allows you to set the lighting time from 10 seconds to 30 minutes;
• LUX -...
