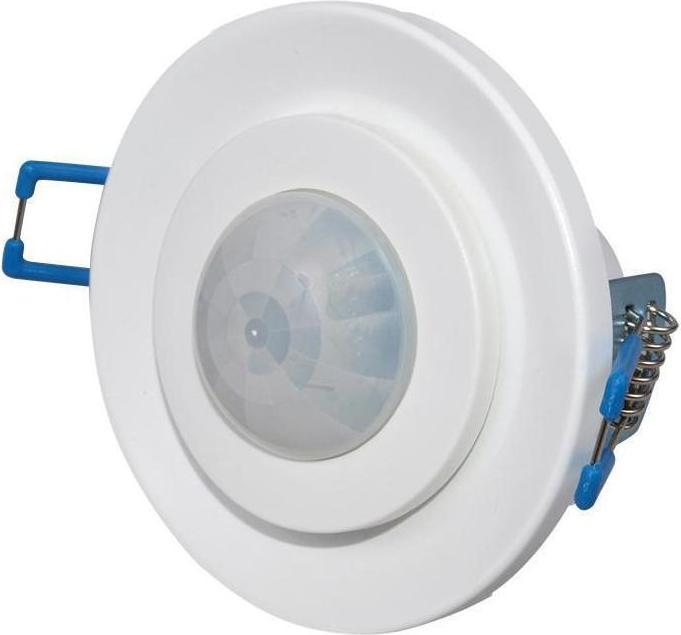

Maclean MCE130 MCE130 Infrared Motion Detector range 6m

Multifunctional in-wall switch with motion sensor, equipped with a highly sensitive infrared detector. The MCE130 is a device with comprehensive functionality that helps you save electricity. Thanks to the infrared sensor, the load automatically turns on as soon as movement is detected within the sensing area. The light-sensitive sensor allows you to set the device to operate only during specific times of the day.

The sensor is used for the automatic control of lighting or other electrical devices, enabling you to save energy. The lighting is activated by the sensor, allowing you to completely forgo external services. The relatively high power capacity of the devices that can be connected to the sensor expands its application possibilities.

Specification

• Supply voltage: 220-240V/50Hz
• Detection range: max. 6 m (<24 °C)
• Light sensor: 3-2000LUX (adjustable)
• Turn-on time:
• min: 10s±3s
• max.: 15min±2min
• Load capacity:
• 800W (incandescent lamps)
• 400W (energy-saving lamps)
• Detection field: 360º
• Operating temperature: -20~+40°C
• Operating humidity: <93 % RH
• Recommended installation height: max: 2.2 m ~ 4 m
• Power consumption: 0.5 W
• Detected movement speed: 0.6–1.5 m/s

Set includes

• Maclean MCE130 PIR motion sensor
• User manual
• Manufacturer's original packaging

Features

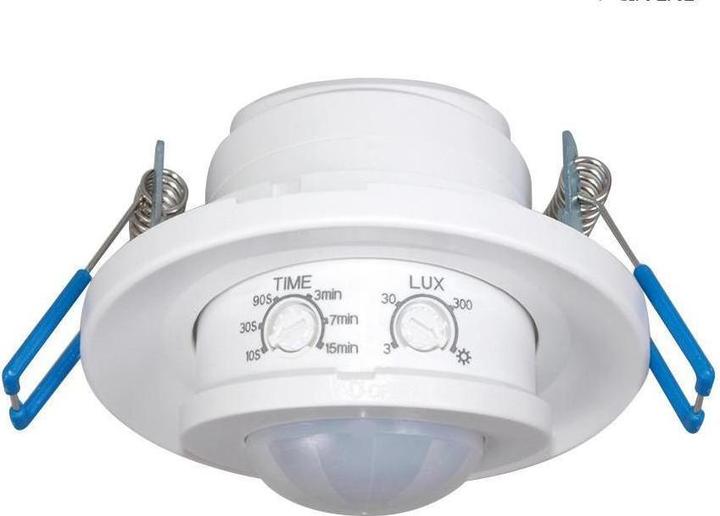

• The light sensor can be adjusted as needed:
• SUN position (max) – Day and night operation
• MOON – Operates at night with a horizontal intensity of about 3LUX.
• Switch-on time setting: Depending on your needs, it can be adjusted from 10 s ± 3 s to 15 min ± 2 min.
• The timer resets every time the device detects movement.
