Lacont Hazardous goods storage cupboard, type 30, with glass panel, 2 vision panel

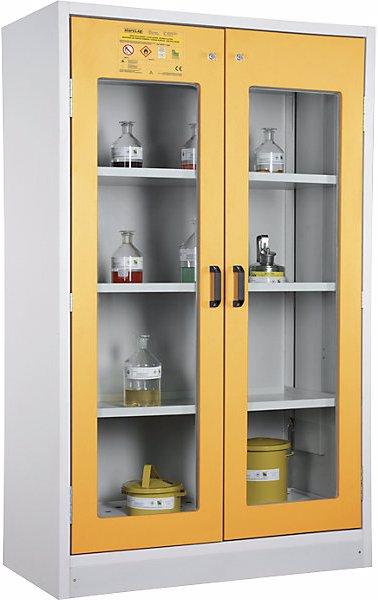

Hazardous goods storage cupboard, type 30, with glass panel and two vision panel doors. Dimensions: HxWxD 1935 x 1195 x 595 mm.

This cupboard has limited approval for the storage of flammable liquids in compliance with EN 14470-1 (type 30) and TRGS 510 (Annex 3). It is type approved as fireproof for over 30 minutes and GS tested. The fire-resistant glazing in the door allows for immediate visibility of hazardous substances even when the door is closed, eliminating unnecessary searching and saving time. It is ideal for setup in sales showrooms, material distribution, and similar environments. The doors close automatically in the event of a fire.

The cupboard is supplied complete with a perforated metal cover for the base sump. It operates in accordance with TRGS 510 and can be approved without extraction, provided the explosion-protected area around the cupboard is maintained.

The cupboard body and doors are made of B1 material in light grey (RAL 7035), with doors in daffodil yellow (RAL 1007) featuring fire-resistant glazing. Ventilation is connected using DN 80 pipe sockets. It has adjustable feet for leveling on uneven surfaces and an earth connection compliant with BGR 132 to avoid ignition sources.

Identification is in accordance with EN 14470-1, TRGS 510, Annex 3, ISO 3864, and ASR A1.3. Interior fittings include one base sump in accordance with StawaR and the manufacturer's declaration of conformity, one perforated metal cover as the first storage level, and three height-adjustable shelves in increments of 32 mm.

Type 30 cupboards have limited approval for the storage of flammable media in Germany (TRGS 510), Switzerland, the Netherlands, Belgium, and Luxembourg. They are not approved for use in Austria. Please observe the regulations applicable in your country. All specified maximum loads apply with uniform load distribution. Delivery to the point of use is available at an extra cost. The doors can be locked using a cylinder lock.
