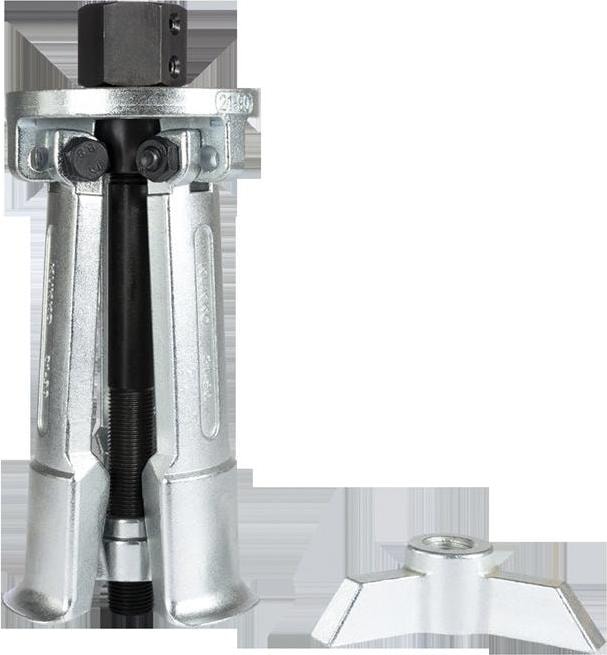

Kukko Internal extractor series 21 3-shell Bearing inner d.100- 200mm mechanical spindle Insert d.175mm

For extracting ball bearings, outer rings of ball bearings, and bushings made of special steel. Even bearings that are very close to the back wall are securely captured and quickly pulled out due to excellent clamping action.

Application: For extracting closely fitting ball bearings, outer rings of ball bearings, and bushings.

Additional technical specifications:

• Weight: 6.58 kg
• Ball bearing ISO: 6020, 6220, 6320, 16020, 61820, 6022, 6222, 6322, 16022, 61822, 6024, 6224, 16024, 61824, 6026, 6226, 61826, 6028, 6228, 61828, 6030, 61830, 6032, 61832, 6034, 61834, 6036, 61838, 6040, 61840
• Maximum inner diameter of the ball bearing: 200 mm
• Minimum inner diameter of the ball bearing: 100 mm
• Length of the internal pullers: 220 mm
• Insertion depth: 175 mm
• Number of segments: 3

Advantages: KUKKO internal pullers can be combined with counter supports as well as sliding hammers. Extensions from the 21-V series allow for the release of deeply seated bearings in combination with the internal pullers. Spare parts are available for internal pullers in sizes 21-89 and 21-90.
