Kern Electrical force gauge Max 500 N d=0.1 N
Force measuring deviceIn Detail

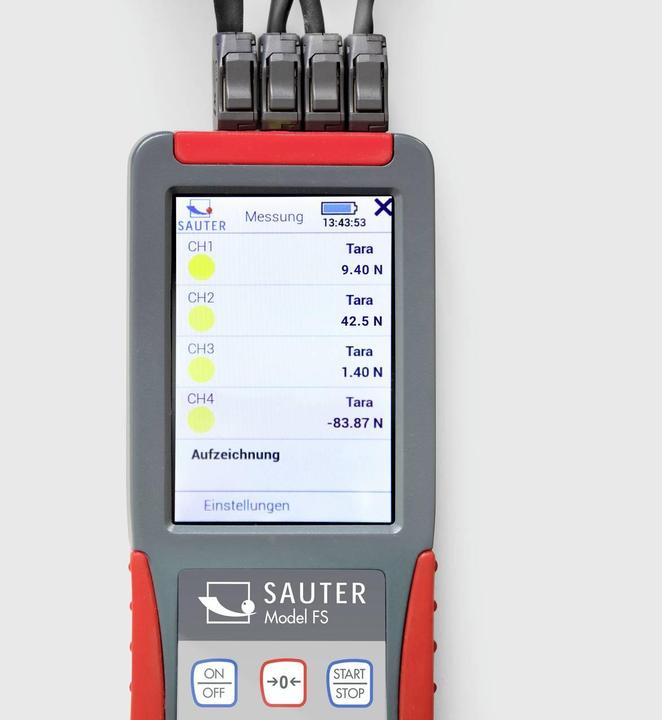

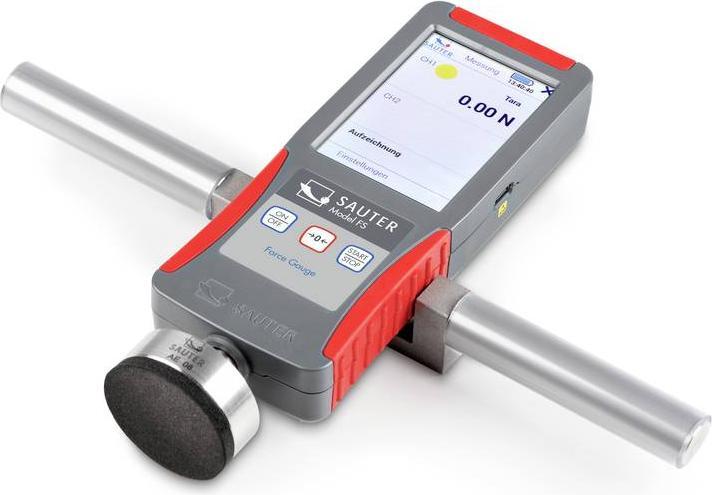

Use with integrated measuring cell: The premium force measuring device SAUTER FS features an integrated measuring cell for tensile and compressive force applications. Whether used mobile for quick testing or stationary integrated into a test stand or production line, all recorded values can be read at a glance in real-time via the multifunction display. The integrated interface allows data to be sent to a PC or laptop for further processing.
Use with external measuring cells: The premium force measuring device SAUTER FS is compatible with all SAUTER strain gauge measuring cells. Up to 4 external measuring cells can be connected simultaneously. When using all available external measuring channels, the internal measuring cell is deactivated as long as an external measuring cell is connected.
Measuring forces in various tensile or compressive directions is possible with just one measuring device. 3.5-inch touchscreen, standard version with 4 measuring channels for external force sensors. An internal measuring cell is possible (deactivated when an external measuring cell is connected). Suitable for 4-wire and 6-wire sensors with strain gauges. Two-point calibration with weights or numerical calibration is possible. The specific data of an external sensor is stored directly in the connector. USB interface for data transmission and power supply is standard. Internal device memory (16 GB). Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm. Tolerance function, track function for continuous measurement display, peak value measurement. Mountable on all SAUTER test stands. Delivered in a high-quality and robust system case (systainer® T-LOC) including power supply unit and USB Type C cable. Tip: Order the practical system case (systainer® T-LOC) for storing and transporting accessories, clamps, sensors, etc. at the same time.
