Product details

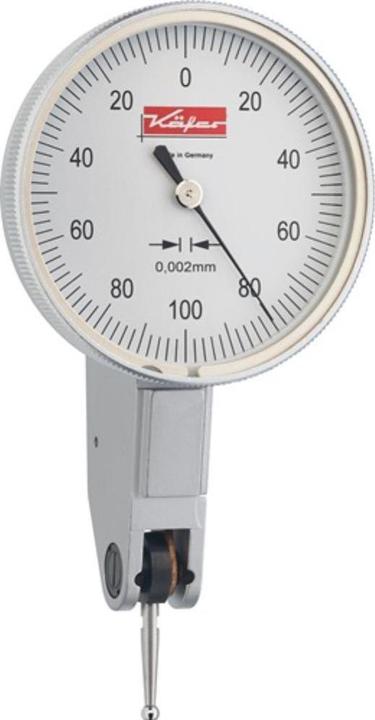

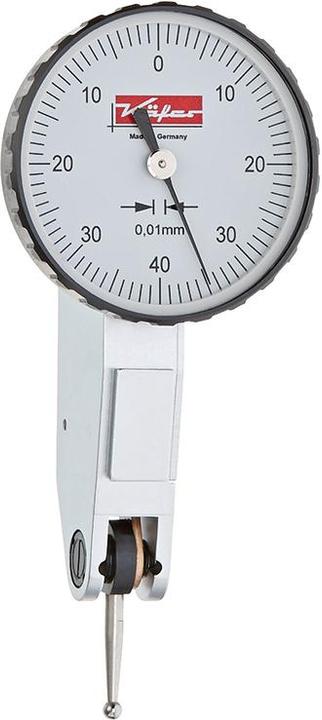

Accuracy according to DIN 2270, automatic switching of the measuring direction, essential bearing points of the measuring instruments are mounted in precise bushings, bearing of the feeler lever shaft in precision ball bearings, housing chrome-plated, anti-magnetic display (ordinary magnetic fields have no influence on the reading), three milled dovetail guides for holding the clamping shank, rotatable scale. The length specifications of the measuring inserts (measuring insert length in mm) refer to the center of the ball measuring insert with 2 mm HM ball measuring insert thread M1.6. Additional technical features: Design: measuring insert pivotable at a right angle to the dial, subject to inspection: yes.
Delivery includes clamping shank Ø 8 mm h6 and key. Calibration available upon request and for an additional charge.
