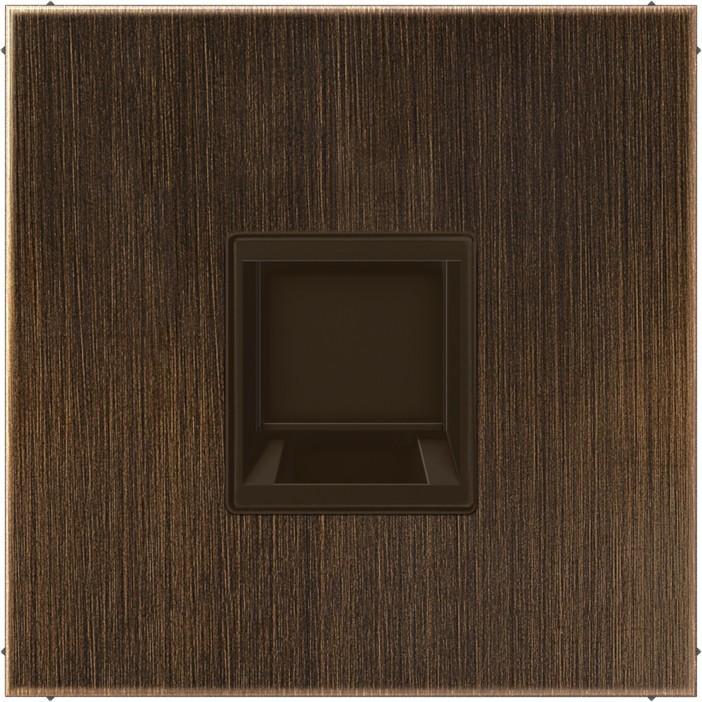

JUNG Supporting ring Mod-Jack 1f LS ms mt Clampingbef ME1969-15WEAT

Jung Cover 1-gang ME1969-15WEAT

Manufacturer: Jung
Description: 1-gang cover for MJ WE TE connection
Type: ME1969-15WEAT
Composition: Other
Usage: Modular Jack
Support ring: Yes
With dust protection: Yes
With flap cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With pressure: No
Mounting type: Surface mounting
Material: Metal
Material quality: Other
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Surface finish: Matt
Color: Brass
RAL number (similar): 8014
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Shielded housing: No
Luster terminal: No
With lighting: No
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm

Jung Cover 1-gang ME1969-15WEAT: additional details (complete with support ring, screw fastening)
Cover flap with return spring for Modular Jack sockets from TE Connectivity for maximum cable diameter of 10 mm:
EMT Cat. 5e, 180°
EMT Cat. 5e, 90°
for maximum cable diameter of 6.5 mm:
EMT Cat. 5e, 180°
EMT Cat. 5e, 90°
Toolless Jack Cat. 3 unshielded
Toolless Jack Cat. 5e unshielded
Toolless Jack Cat. 5e shielded
Toolless Jack Cat. 6 unshielded
Toolless Jack Cat. 6 shielded
MTRJ-Fiber Optic Jack (fiber optic cable): deep socket (min. 62 mm) required for 1 socket.
