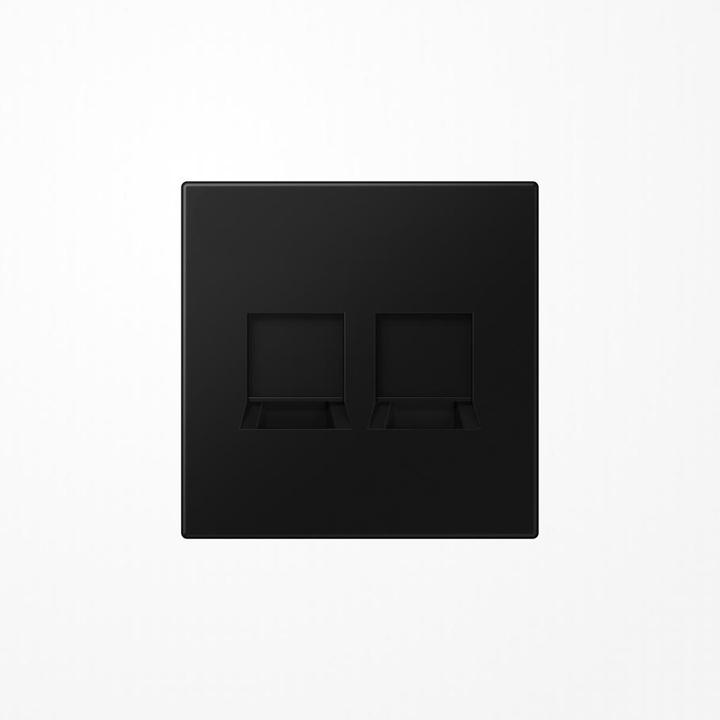

JUNG Support ring Mod-Jack 2f LS sw mt clamping sleeve LS1969-2WESWM
In Detail
Jung cover 2-gang LS1969-2WESWM
Manufacturer: Jung
Designation: Cover 2-gang f.MJ WE AMP, Radiall
Type: LS1969-2WESWM
Composition: Other
Use: Modular-Jack
Support ring: Yes
With dust protection: Yes
With hinged cover: No
Outlet direction: Straight
Labelling field: Without labelling field
With imprint: No
Mounting type: Surface-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Lacquered
Surface finish: Matt
Colour: Black
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Housing shielded: No
Luster terminal: No
With lighting: No
Suitable for degree of protection (IP): IP20
Device width: 70 mm
Device height: 70 mm
Jung cover 2-fold LS1969-2WESWM: Further details (complete with support ring, screw fixing). Cover with return spring for universal module. Suitable for various modular jack sockets from different manufacturers.
