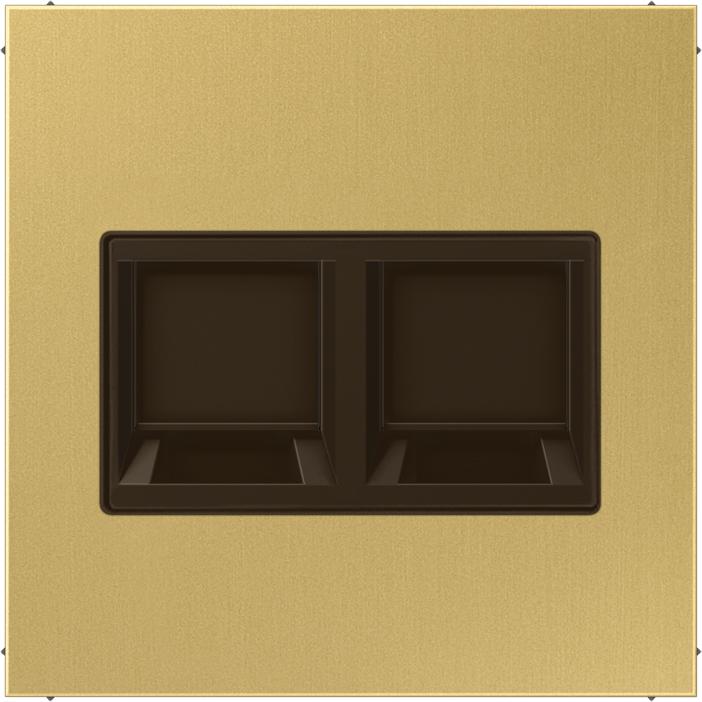

JUNG Support ring Mod-Jack 2f LS ms mt Clamping reference ME1969-2WEC

Jung cover 2-gang ME1969-2WEC

Manufacturer: Jung
Designation: Cover 2-gang for MJ WE AMP, Radiall
Type: ME1969-2WEC
Composition: Other
Use: Modular-Jack
Support ring: Yes
With dust protection: Yes
With hinged cover: No
Outlet direction: Straight
Labelling field: Without labelling field
With imprint: No
Mounting type: Surface-mounted
Material: Metal
Material quality: Other
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Surface finish: Matt
Colour: Brass
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Housing shielded: No
Luster terminal: No
With lighting: No
Suitable for degree of protection (IP): IP20
Device width: 70 mm
Device height: 70 mm

Further details: Complete with support ring, screw fixing. Cover with return spring for universal module. Suitable for 2 sockets, also for modular jack sockets from Radiall. Compatible with unshielded Cat. 4, 6-pin RJ 12 and 8-pin RJ 45 connectors from various manufacturers. EAN: 4011377178045.
