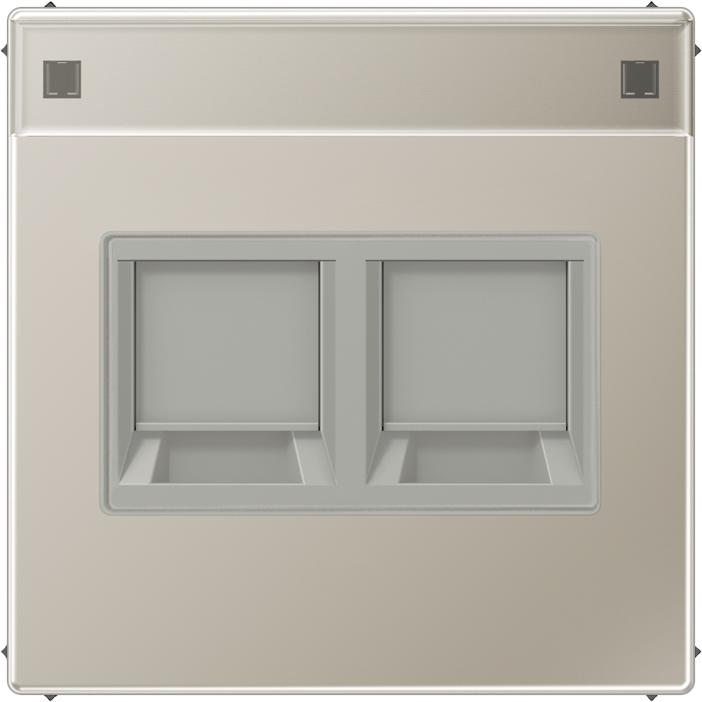

JUNG Support ring Mod-Jack 2f LS edst mt clamping reference ES1969-2NAWE

Jung Cover 2-fold ES1969-2NAWE
Manufacturer: Jung
Description: 2-fold cover for MJ NA WE AMP, Rad.
Type: ES1969-2NAWE
Composition: Other
Usage: Modular Jack
Washer: Yes
With dust protection: Yes
With flip cover: No
Outlet orientation: Straight
Labeling field: With labeling field
With pressure: No
Mounting type: Surface mounting
Material: Metal
Material quality: Stainless steel
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Surface finish: Matte
Color: Stainless steel
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Shielded housing: No
Chandelier terminal: No
With lighting: No
Suitable for protection class (IP): IP20

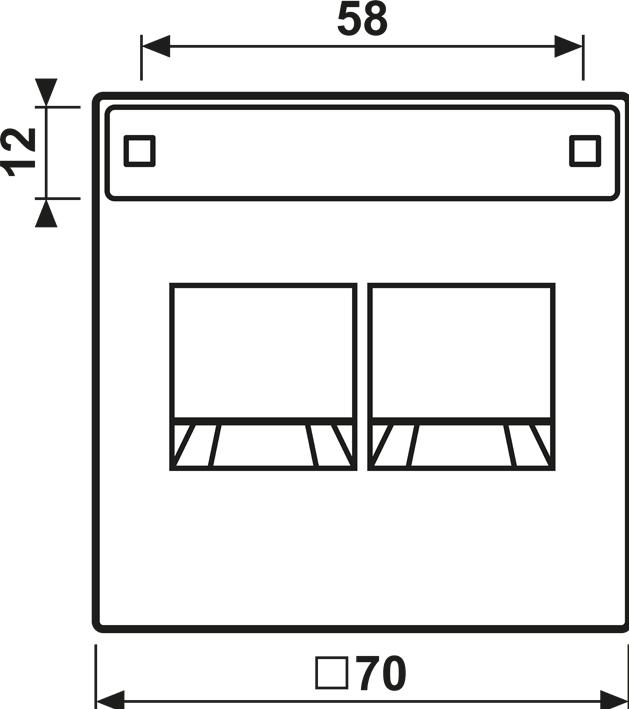

Device width: 70 mm
Device height: 70 mm

Additional details: Complete with washer and screw fastening. Cover with return spring for universal module. Suitable for 2 sockets, also for Modular Jack sockets from RADIALL. Compatible with unshielded Cat. 4, 6-pin RJ 12 and Cat. 4, 8-pin RJ 45 as well as Cat. 5e, 8-pin RJ 45 from Panduit. Also compatible with various Keystone modules from Assmann and SCHRACK.
