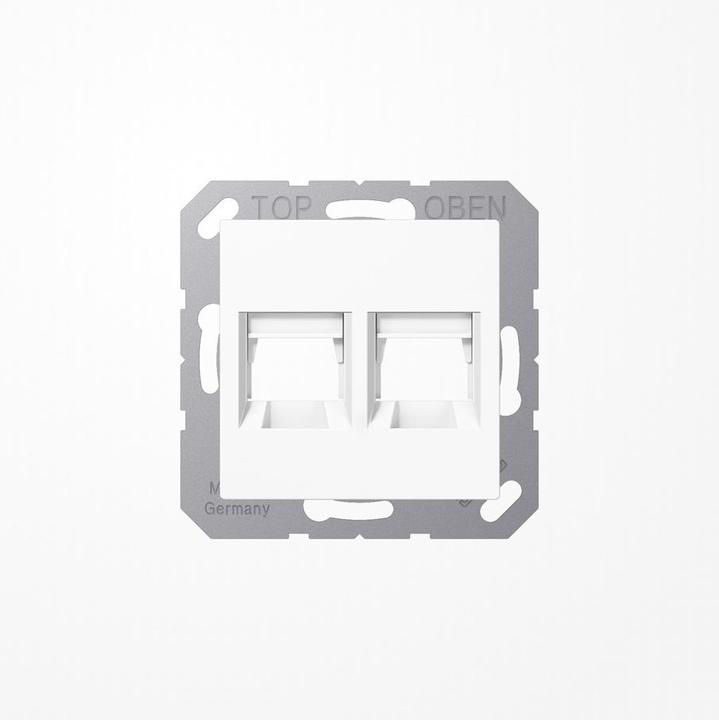

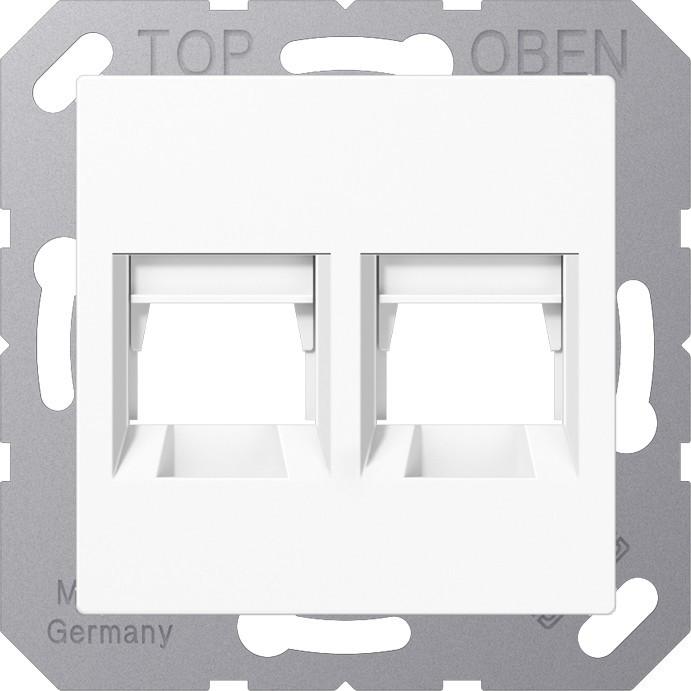

JUNG Support ring Mod-Jack 2f AS/A aws glz A1569-25WEWW

Jung cover 2-gang A1569-25WEWW

Manufacturer: Jung
Designation: Cover 2-gang for modular jack TE-connect
Type: A1569-25WEWW
Composition: Other
Use: Modular-Jack
Support ring: Yes
With dust protection: Yes
With hinged cover: No
Outlet direction: Straight
Labelling field: With labelling field
With imprint: No
Mounting type: Surface-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Surface finish: Glossy
Colour: White
RAL number (similar): 9016
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Housing shielded: No
Luster terminal: No
With lighting: No
Suitable for degree of protection (IP): IP20
Device width: 55 mm
Device height: 55 mm

Jung cover 2-gang A1569-25WEWW: further details (complete with support ring, screw fastening)
Cover with return spring for modular jack sockets TE Connectivity for cable diameter max. 10 mm:

• EMT Cat. 5e, 180°
• EMT Cat. 5e, 90°

For cable diameter max. 6.5 mm:

• EMT Cat. 5e, 180°
• EMT Cat. 5e, 90°

Toolless Jack Cat. 3 unshielded
Toolless Jack Cat. 5e unshielded
Toolless Jack Cat. 5e shielded
Toolless Jack Cat. 6 unshielded
Toolless Jack Cat. 6 shielded
MTRJ-LWL-Jack (fibre optic cable): deep socket (min. 62 mm) required for 2 sockets.
