JUNG Schuko
Product details

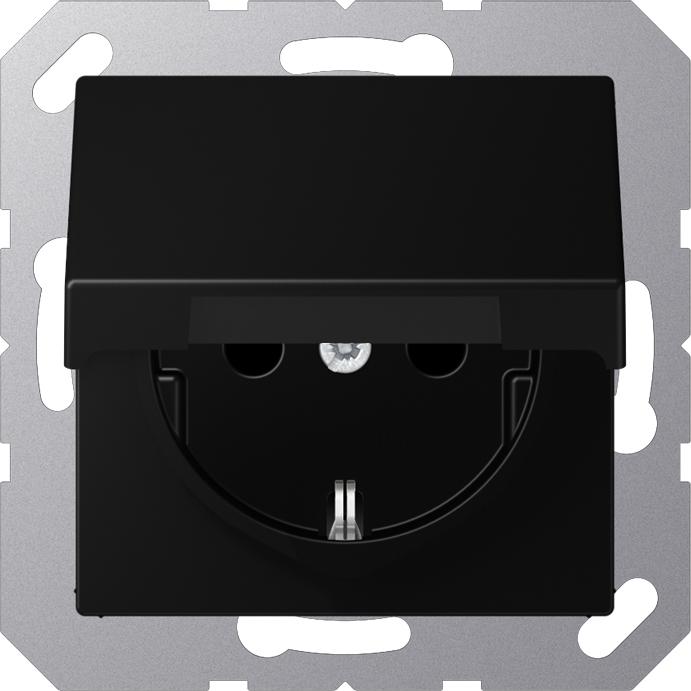

The Schuko built-in socket from JUNG is a high-quality protective contact socket characterized by its elegant design in matte graphite black. It is designed for flush mounting and provides a reliable connection for electrical devices. The socket is equipped with a hinged cover supported by a return spring, offering additional protection. The spring clamps allow for the connection of rigid and untreated flexible conductors up to 2.5 mm², simplifying installation. The connection terminals comply with DIN VDE 0620 standards, ensuring a safe and stable connection. The socket is made of painted thermoplastic and is integrated into the protective measure via a grounding rail, enhancing safety. With a compact design of 55 x 55 mm, it is ideal for indoor use.
- Hinged cover with return spring for additional protection
- Spring clamps for easy installation of conductors up to 2.5 mm²
- Grounding rail for increased safety
- Made from high-quality painted thermoplastic.
Exact colour description | graphite black matt |
Socket type | CEE 7/3 |
Number of cans | 1x |
Mounting type | Flush-mounted |
Item number | 36748905 |
Manufacturer | JUNG |
Category | Sockets |
Manufacturer no. | A1520NBFKLSWM |
Release date | 28.6.2023 |
Colour | Black |
Exact colour description | graphite black matt |
Material group | Plastic |
Material | Plastic (thermoplastic, painted, halogen-free) |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1x |
Protection type (IP code) | IP44 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
connector type | Spring-cage connection |
Additional properties | Hinged cover |
Smart home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |
Stack depth | 2.95 cm |
Width | 5.50 cm |
Height | 5.50 cm |
