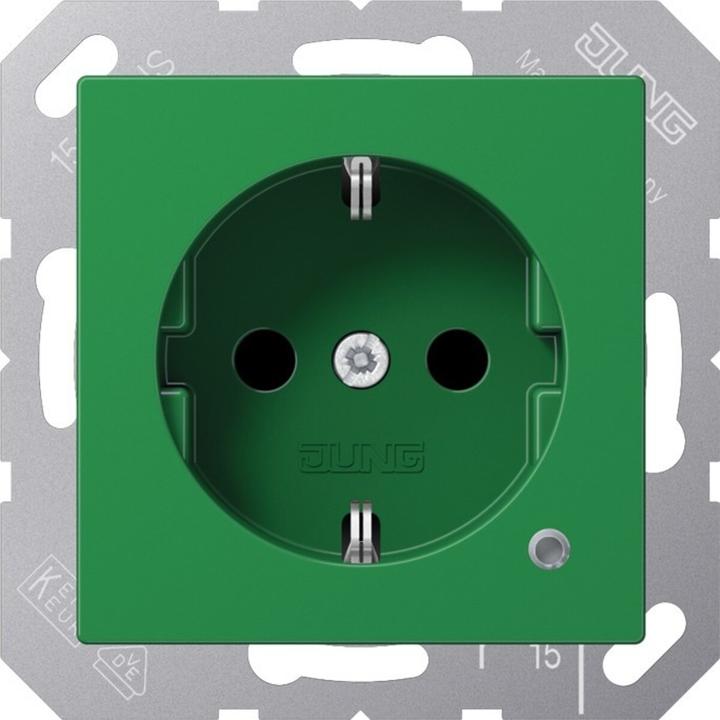

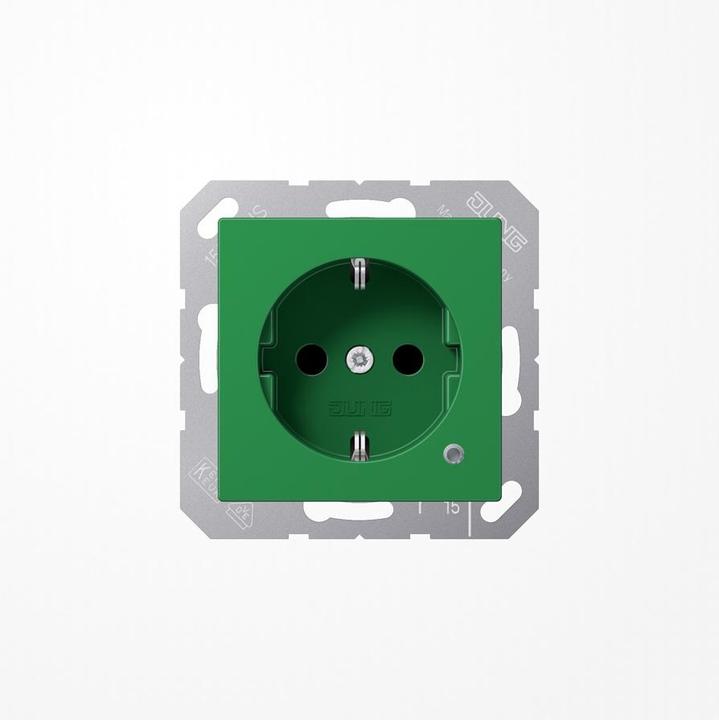

JUNG SCHUKO socket outlet

Jung Schuko socket outlet 16 A 250V A 1520 BF KO GN

Manufacturer: Jung
Designation: Schuko socket outlet 16 A 250V with touch protection
Type: A 1520 BF KO GN
Design: Schuko
Protective contact: Yes
Protective conductor contact round: Yes
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of phases: 1
Imprint/labeling: Without
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: Yes
Text field/inscription area: No
Color: Green
RAL number (similar): 6029
Transparent: No
Lockable: No
Eject mechanism: No
With function lighting: Yes
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Safety supply (green)
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Other
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20
Device width: 55 mm
Device height: 55 mm
Cover: Central plate

Further details:
Schuko® socket outlet, green (for SV) with function display (green LED)
Art. no.: 193-LED GN (according to DIN VDE 0100 part 710.55.3)
With integrated increased touch protection with spring terminals for rigid and untreated flexible conductors up to 2.5 mm²
Connection terminals according to DIN VDE 0620
Support ring, claws, and claw screws are integrated into the protective measure via an earthing bar.
Function indicator can be replaced from the front without interrupting the voltage
Material: Thermoplastic

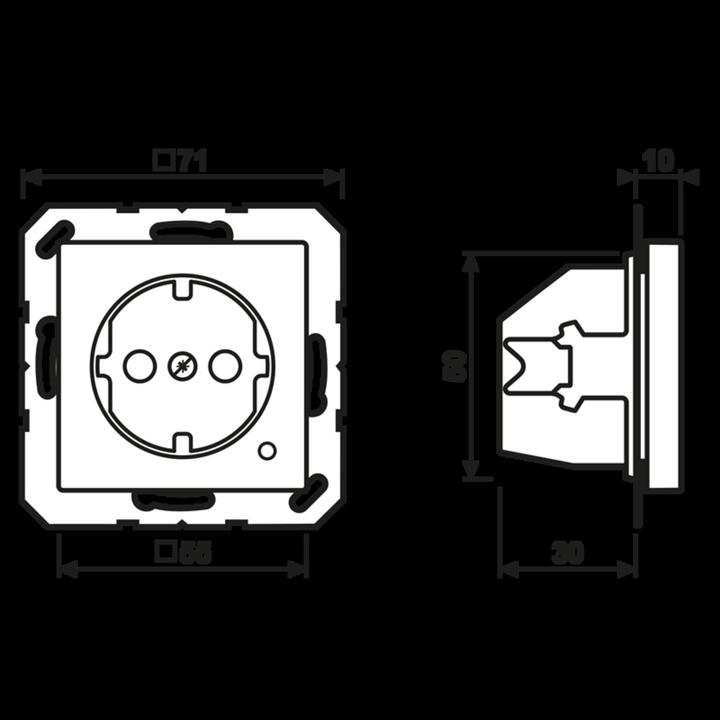

Dimensions (W x H): 55 x 55 mm.
